Layer7 API Gateway: Cluster property otk.port is read-only

Products

• CA API Gateway
• API SECURITY
• CA API Gateway Precision API Monitoring Module for API Gateway (Layer 7)
• CA API Gateway Enterprise Service Manager (Layer 7)
• STARTER PACK-7
• CA Microgateway

Issue/Introduction

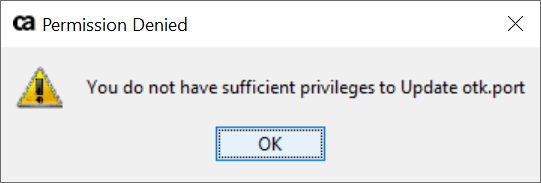

After a fresh install of the OAuth Toolkit, the cluster property otk.port is found to be read-only. When attempting to edit the property you will receive the below error.

Environment

Release : 10.0

Component : API GATEWAY

Resolution

If you are running OTK 4.3.1, this can be addressed by applying CR02 [https://support.broadcom.com/external/content/release-announcements/CA-API-Gateway-Solutions--Patches/3024].

In some cases, this can also be found in OTK 4.4. While a permanent fix is underway, an interim solution will be to define your own cluster property for the port and reference this in the #OTK Client Context Variables policy.

https://techdocs.broadcom.com/content/broadcom/techdocs/us/en/ca-enterprise-software/layer7-api-management/api-management-oauth-toolkit/4-4/customizing-the-oauth-toolkit/set-an-alternative-https-port.html
