Layer7 OAuth Toolkit: preferred_username not set in JWT access token

Products

• CA API Gateway
• API SECURITY
• STARTER PACK-7
• CA Microgateway

Issue/Introduction

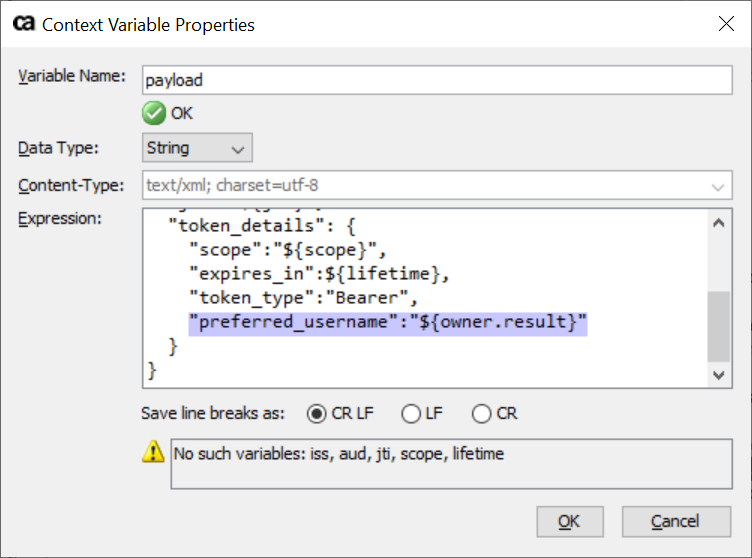

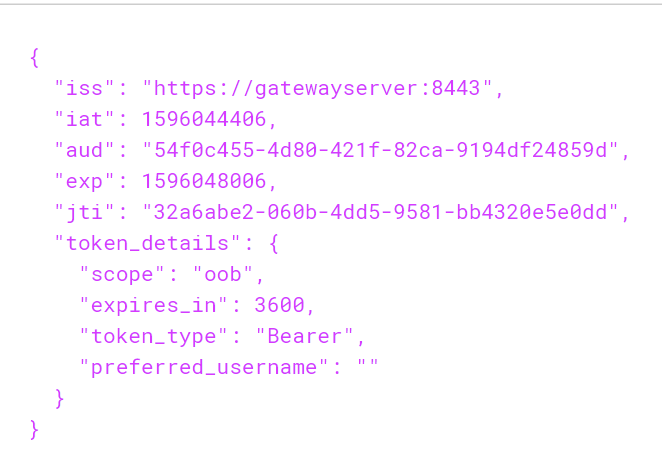

When generating an access token as a JWT, the preferred_username claim is missing or blank,

Environment

Release : 9.4

Component : API GATEWAY

Cause

This occurs because the preferred_username claim is only set when a scope of openid is requested.

Resolution

To return the username you will need to ensure that the client is registered with and requests the scope of openid.

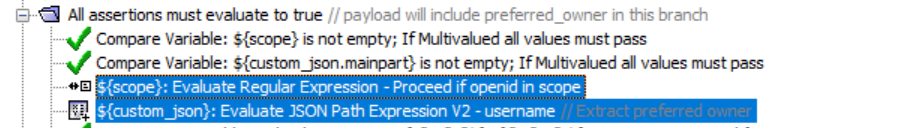

Optionally, the scope check can be removed or customized to another scope value defined in your organization.
