How to test the connection of Spectrum data sources in JasperReports

book

Article ID: 194767

calendar_today

Updated On:

Products

CA Spectrum

Issue/Introduction

How to test the connection of Spectrum data sources in JasperReports

Environment

Release : 10.x

Component : Spectrum Reporting - JasperReports

Resolution

1. Login at http://<JasperReports_server>:<port>/jasperserver-pro/

Username: superuser

Password: superuser

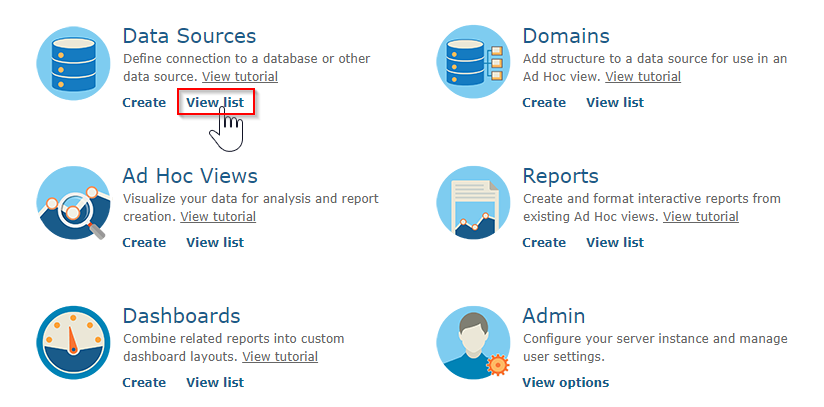

2. Click on View list of Data Sources:

3. Right-click on spectrum_domain_ds (for Ad Hoc Reports)  and select Edit. Do the same for spectrum_ds (for canned reports):

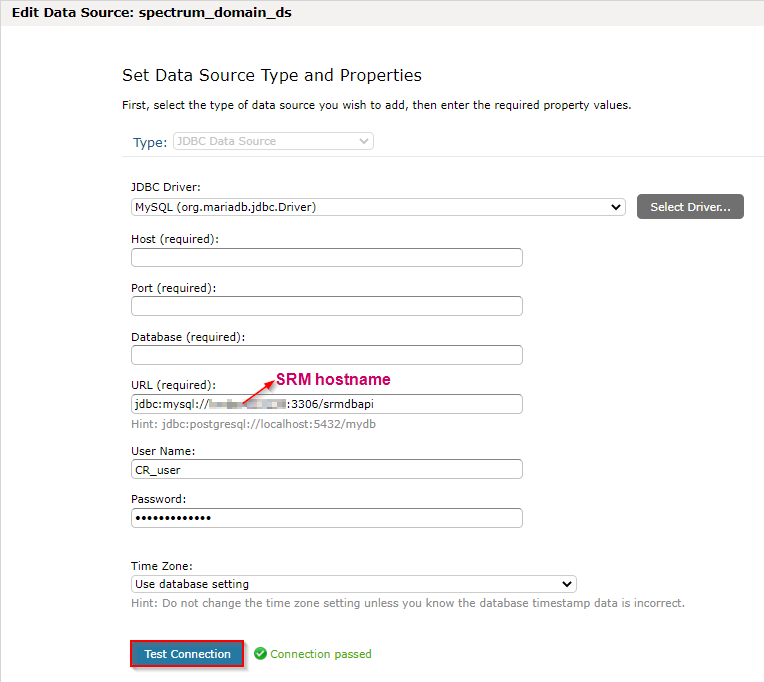

4. Ensure the correct SRM (Spectrum Report Manager) hostname is supplied in the URL field. Also ensure the User Name is CR_user. The password for the CR_user is '0n3cl1Ck' (without quotes). Click on Test Connection button.

5. Ensure the correct SRM (Spectrum Report Manager) hostname is supplied in the URL field. Also ensure the User Name is CR_user. The password for the CR_user is '0n3cl1Ck' (without quotes). Click on Test Connection button.



Additional Information

https://knowledge.broadcom.com/external/article?articleId=4186
