CDM probe - Message Definition - Run-time error '35603' - MCS IM and AdminConsole in use

Article Id: 193238
Status: Published
Updated On: 17-06-2020 10:08
Products:
CA Unified Infrastructure Management On-Premise (Nimsoft / UIM) , NIMSOFT PROBES , DX Infrastructure Management
Issue/Introduction:

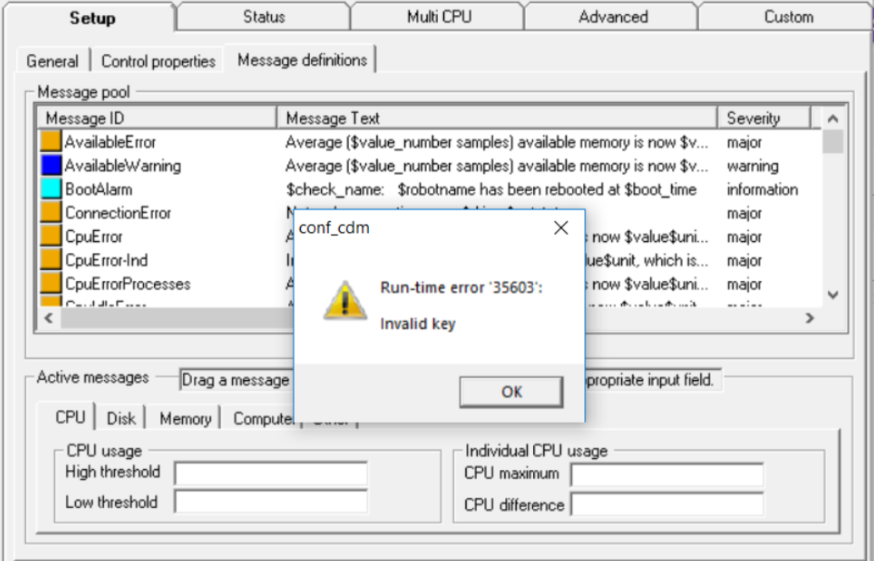

Have MCS installed and configured in our environment.  Tried to change the message in the CDM probe for "Computer reboot" either to add the $robotname or change severity and I get a Run-time error of 35603 (attached).  How to change if possible?



Environment:

Release : 8.x, 9.x, 20.x

Component : UIM - CDM WITH IOSTAT

Resolution:

Workaround

============

- Do a backup of the cdm probe folder before doing any action.

- Stop the cdm probe

- Edit the $Nimsoft\probes\system\cdm\cdm.cfg file and do the change (search for section and subsystem entry inside it)

- Re-Start the cdm probe

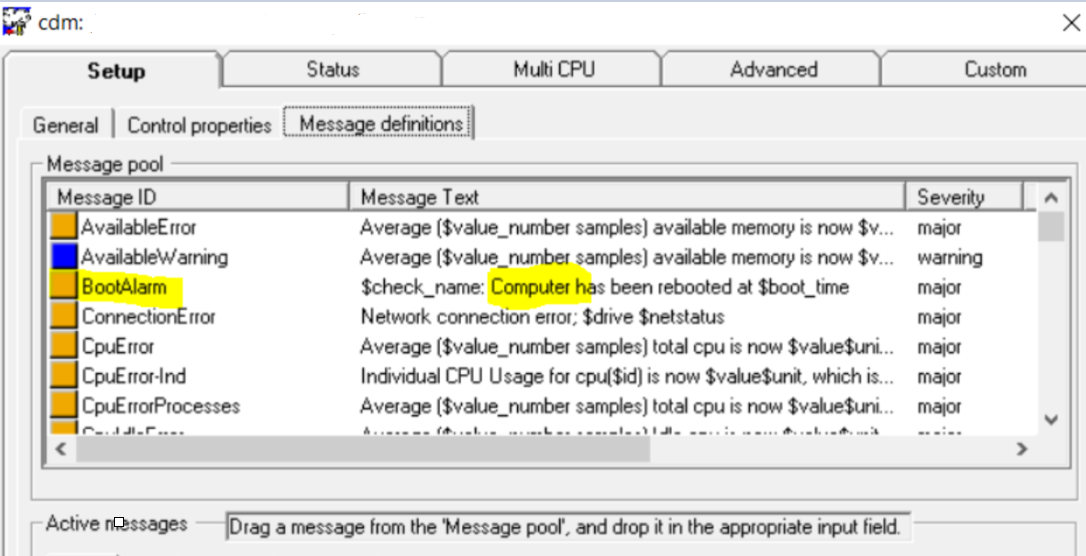

Due MCS cdm in use you can change the custom alarm messages via Alarm Policy in Operator Console.

https://techdocs.broadcom.com/content/broadcom/techdocs/us/en/ca-enterprise-software/it-operations-management/unified-infrastructure-management/9-0-2/configuring-and-viewing-monitoring-data/operator-console-functions/manage-alarms-with-centralized-alarm-policies/alarm-message-variables.html

Note: There are some limitations for now i.e not able to change the alarm messages from Boot Alarm
