Application Landscape Showing as Online and Delayed in the Terma website System Health Page

Products

• Automic Automation Intelligence

Issue/Introduction

Please note: Application Landscape functionality will be retired and does not work correctly - please see article https://knowledge.broadcom.com/external/article?articleId=211095



After a new installation of AAI/Jaws you may notice that on the System Health page of the Terma website shows that the Scheduler Application Landscape Showing as Online and Delayed like in the screenshot below:

Environment

AAI 6.0

Resolution

This is normal until you make some configurations within Application Landscape.

If you have not made any configurations yet in Application Landscape you will see only 2 jobs listed with no Last Event time.

Click on the "AL" icon on the top of the page


Then click on the drop down arrow next to home and select "Application Landscape"

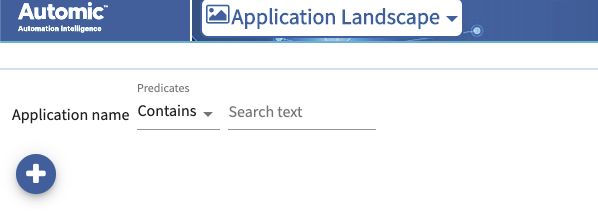

Then click on the + icon to define an application:

Once defined you should see a third job listed on the System Health page for Application Landscape and soon after you should see the status change to green and "Online and On Time".



If you happen to remove the application(s) that were configured in App Landscape, the last Event will stop updating and after a period of time the status will go back to "Online and Delayed" and change to Yellow again:

Additional Information

Note that you must have Application Landscape enabled through the config tool params tab by following the KB articles below:

https://knowledge.broadcom.com/external/article?articleId=186961

https://knowledge.broadcom.com/external/article?articleId=186962
