Client Automation - Explanation about NOS and NOSRequest parameters

Products

• CA Client Automation - IT Client Manager
• CA Client Automation
• CA Client Automation - Software Delivery

Issue/Introduction

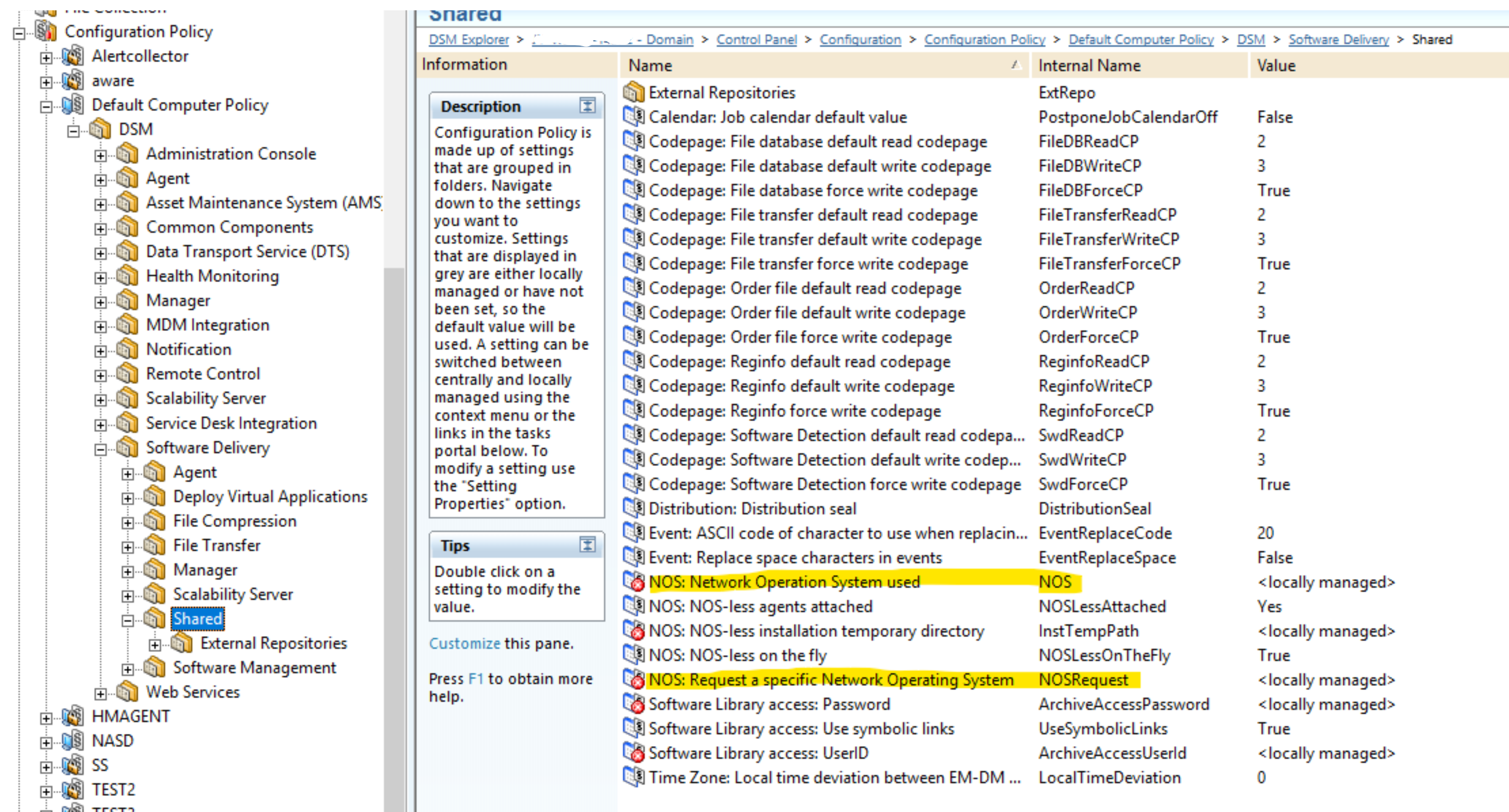

What are the differences between parameters NOS (NOS: Network Operating System Used) and NOSRequest (NOS: Request a specific Network Operating System) which appear in configuration policy under



DSM/Software Delivery/Shared ?





Environment

Client Automation - All versions



Resolution

Access Method to SD library for an agent could be defined in 2 different locations :





1- In database

It is possible to update its value via DSM Explorer by opening the Computer Properties :









or via following command executed on agent



sd_acmd SetDownloadMethod NOS

or

sd_acmd SetDownloadMethod NONE











2- In comstore of agent in parameter : itrm/usd/shared/NOS

Following command retrieve the current value :



ccnfcmda -cmd GetParameterValue -ps itrm/usd/shared -pn NOS







When SD agent should execute a package it checks the value defined in mdb database and value defined in comstore.

NONE (NOS-Less) overrides NOS.





Example :

If there are

mdb = MS

Comstore = NONE



agent will use NONE







If there are

mdb = NONE

Comstore = MS



agent will use NONE





If SD Agent uses MS and it does not work, it tries automatically NONE download method.





Parameter NOSrequest is used only to generate automatically (only once) a command like

sd_acmd SetDownloadMethod ...



in order to update the value in mdb database





Example :



If a machine receives a configuration policy containing NOSRequest=NONE, it will execute this command :

sd_acmd SetDownloadMethod NONE



So this machine will be configured in database with Download Method = NONE

SD Agent will use this method to access the SD package





Additional Information

In database Download Method in stored in table usd_target in column download_method (0=NOS, 1=NOS-Less, 2=DTS)

Following SQL Query could give the result for all computers

SELECT a.agent_name,
CASE t.download_method
   WHEN 0 THEN 'Internal - NOS'
   WHEN 1 THEN 'Internal - NOS-less'
   WHEN 2 THEN 'DTS - NOS-less'
END 'Download Method'
FROM usd_target t
LEFT JOIN ca_agent a ON a.object_uuid=t.objectid
