What is the difference between camsave config, camsave persist and camsave explicit

book

Article ID: 18517

calendar_today

Updated On:

Products

CA Client Automation - IT Client Manager CA Client Automation

Issue/Introduction



What is the difference between camsave persist,  camsave config,  and camsave explicit?

Environment

Client Automation : All Versions

Resolution

CAMSAVE EXPLICIT -  generates the file %CAI_MSQ%\cam.cfg with parameters in section *CONFIG which are used by cam.exe.

  The Paths and Routing section will be left blank.

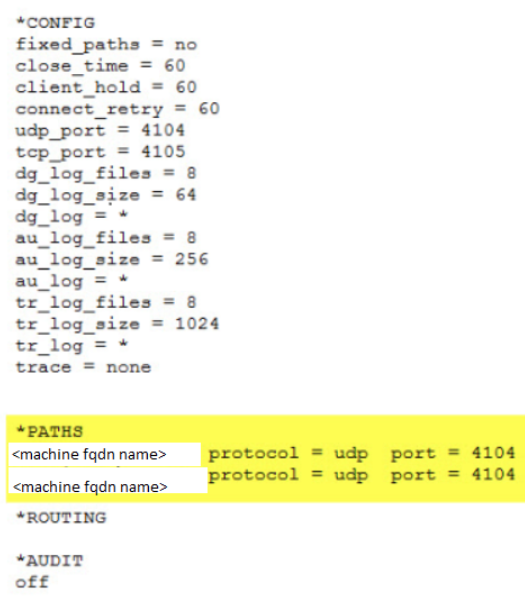

User-added image


 NOTE: Since "camsave explicit" creates a cam,cfg file, if there is already one there, any lines in *PATHS and/or *ROUTING will be removed.



CAMSAVE PERSIST - generates the file %CAI_MSQ%\cam.cfg with parameters in section *CONFIG,

   but it also populates the Paths and Routing with any machines that is connected at the Time.

   Since UDP is the default protocol, agents that are showing to use UDP do not need to be in the cam.cfg file, only agents that show using TCP 4105.

NOTE: Since it does populate all machines that are connected at the time, this command has been known to freeze and create a corrupted CAM.CFG file

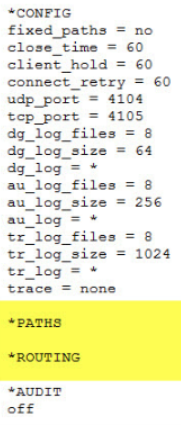

User-added image

CAMSAVE CONFIG -  generates the file %CAI_MSQ%\save.cfg with parameters in section *CONFIG,

   but it also populates the Paths and Routing with any machines that is connected at the Time.

   Since UDP is the default protocol, agents that are showing to use UDP do not need to be in the cam.cfg file, only agents that show using TCP 4105.



   NOTE: Since this files does not populate create a cam.cfg, but save.cfg  it is less likely to have an issue when creating it, but you will have to rename the file

              to cam.cfg when done



To update the cam.cfg you can do the following:

1. Run the update commands before creating the cam.cfg

-  To set CAM fragment size to 1024:
   camconfig fragment_size=1024
   camsave explicit


- To set CAM in trace

  camconfig trace=all
  camsave explicit



2.  Create the cam.cfg file and then added or change the parameters and save the file.




Additional Information

After making any changes to the cam.cfg file, you will need to do the following:

CAF STOP
CAMCLOSE & CAM START -C -L
CAF START
