How to enable the short alarm id in Spectrum OneClick

Article Id: 18431

Status: Published

Updated On: 11-04-2019 07:02

Legacy Id: TEC610966

Products:

CA Spectrum - OneClick , CA Spectrum - Reporting , CA Spectrum - Integrations , CA Spectrum - Alarms & Event Management

Issue/Introduction:

This knowledge document provides the instructions for displaying the short alarm id in the OneClick Alarms tab.

Environment:

Release:
Component:

Resolution:

To display the short alarm id in the OneClick Alarms tab:

1. Log into the OneClick systema s the user that owns the Spectrum OneClick installation.

2. Create a file called "alarm-table-config.xml" in the $SPECROOT/custom/alarm/config directory

3. Add the following to the new "alarm-table-config.xml" file:

<?xml version="1.0" encoding="utf-8"?>
<table idref="alarm-table-config">
<column-list>
<column>
<name>Integer Alarm ID</name>
<content>
<attribute>0x4820067</attribute>
</content>
</column>
</column-list>
</table>

4. Save the file

NOTE: On Windows, be sure to save the file as plain text in your text editor ensuring the file does not save with a .txt or .rtf or any other file extension.

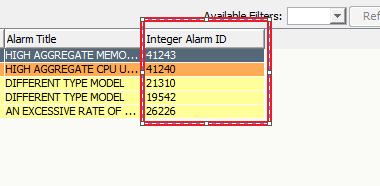

5. Log out of OneClick and log back in. The Alarms tab should now contain the new column.

<Please see attached file for image>

Additional Information:

Please reference the "OneClick Customization" section of the documentation for more information.
