Often, it is desirable to check a Unix, Linux or Mac (ULM) client to determine of a Software Management policy executed on that client. The following information may help with researching that information.



Command Line Utility



The simplest tool is a command line utility:  aex-smf



Sample output:



$ aex-smf list

Name                                   Last run time            Next run time      Status

-----------------------------------------------------------------------------------------------

Install Firefox 12.0 for Linux         2012-05-04 11:12:00      NEVER              Completed

Install Scratchpad                     2012-05-02 12:48:00      NEVER              Failed

-----------------------------------------------------------------------------------------------



 Note: For tasks, use the 'aex-cta list' command.







Finding and Using the Policy and Package Guids



The policy and package guid are keys to many files related to Managed SWD execution on a client. Many files use these two guids for file names or refer to them within the file contents.

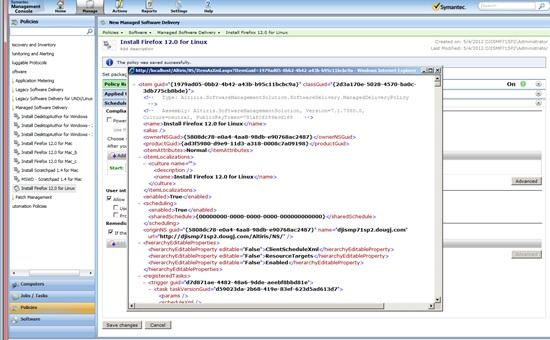

Find the policy guid: In the NS console, right-click on the SWD policy and select ‘View as XML’. The ‘item guid’ is the policy guid. This article will refer to the policy guid of {1979AD05-0BB2-4B42-A43B-B95C11BCBC9A}.








Find the Package Guid: Search that same popup page to find the package guid.















Package Download Location



The package files will download to the client at the following location:   /opt/altiris/notification/nsagent/var/packages. The guids in the directory and file names is the package guid. (Only partial results of the 'ls' output are shown.)



$ ls -alt

-rw-r--r--. 1 root root 1180 May  9 14:46 .aex-pkg-xml-{69C05EDC-9CF5-4493-93AC-86C8B8994CDC}

-rw-r--r--. 1 root root 1159 May  9 14:46 .aex-pkg-xml-{D525DF4D-D60E-42AA-9249-995AA5C29EA6}

drwxr-xr-x. 3 root root 4096 May  4 11:12 {D525DF4D-D60E-42AA-9249-995AA5C29EA6}

drwxr-xr-x. 2 root root 4096 Feb 16 11:25 {69C05EDC-9CF5-4493-93AC-86C8B8994CDC}



$ grep "Name" .aex-pkg-xml*

.aex-pkg-xml-{69C05EDC-9CF5-4493-93AC-86C8B8994CDC}:  <Name><![CDATA[Deployment Automation Folder for Linux]]></Name>

.aex-pkg-xml-{D525DF4D-D60E-42AA-9249-995AA5C29EA6}:  <Name><![CDATA[firefox-12.0.tar.bz2]]></Name>



$ ls -alt {D525DF4D-D60E-42AA-9249-995AA5C29EA6\}

-rw-r--r--.  1 root root      355 May  4 11:12 .aex-pkg-snapshot-{D525DF4D-D60E-42AA-9249-995AA5C29EA6}

-rw-r--r--.  1 root root      639 May  4 11:12 .aex-pkg-codebases-{D525DF4D-D60E-42AA-9249-995AA5C29EA6}

-rwxr-xr-x.  1 root root 18008340 May  4 11:04 firefox-12.0.tar.bz2







Policy Execution History



After a managed software delivery policy has ran, the following files & directories will contain information related to that policy and its execution.



Location 1:   /opt/altiris/notification/nsagent/var/tasks



Note: The task guid is not always known. The files may need to be greped, datetime stamps compared, etc.



$ ll

total 56

-rw-r--r--. 1 root root 214 Feb 16 11:25 swdpkg_{73BD0749-BFF7-44A4-89C0-222BEF032B03}.nst

-rw-r--r--. 1 root root 290 May  4 11:12 swdpkgfrom_{34970BD2-D6B2-4172-955A-23093ED5E10E}.nst

-rw-r--r--. 1 root root 285 Feb 16 11:25 swdpkgfrom_{73BD0749-BFF7-44A4-89C0-222BEF032B03}.nst



$ cat swdpkgfrom_\{34970BD2-D6B2-4172-955A-23093ED5E10E\}.nst

<Task Enabled="1">

               <HandlerCLSID>Altiris.SWDTaskProcessor</HandlerCLSID>

               <Schedule><Trigger Type="0" Description="Task becomes valid on"><BeginDate>1999-12-31 22:00:00</BeginDate></Trigger></Schedule>

               <TaskHistory>

                              <RunTime>2012-05-04 11:12:03 Started</RunTime>

               </TaskHistory>

</Task>





Location 2:    /opt/altiris/notification/smfagent/var/<Policy Guid>

cat state.dat

[general]

Name=Install Firefox 12.0 for Linux

Hash=FEAC1134

LastCompliance=3

UserNotified=false

State=2

LastRunTime=2012-05-04 11:12:00




Location 3:     /opt/altiris/notification/smfagent/var/<Policy Guid>/Items



The Items directory contains a file for each step of the Managed SWD policy execution. You can ‘cat’ these to see the details of each event. For example:





$ grep Execute *

{00000011-0000-0000-0000-616161616262}:Name=Execute install command for firefox-12.0.tar.bz2



$ cat \{00000011-0000-0000-0000-616161616262\}



[general]

Name=Execute install command for firefox-12.0.tar.bz2

RunAttempts=1

LastRunTime=2012-05-04 11:12:29

Hidden=false

State=2





Location 4:    /opt/altiris/notification/smfagent/var/History/<Policy Guid>



This directory contains information similar to 'Location 3', mentioned above. Please refer to the above entry.

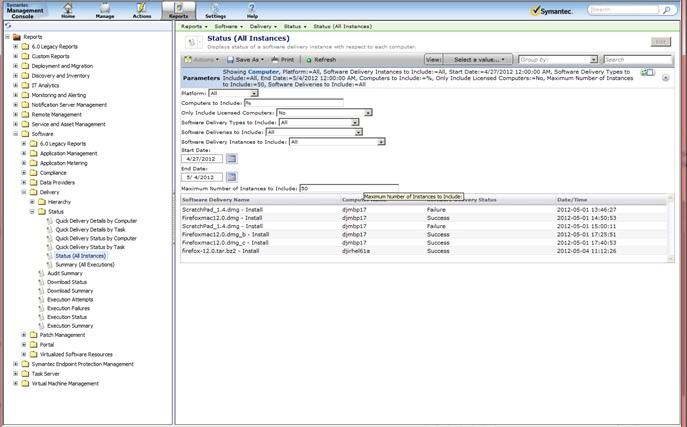

NS Console Reports



There are several reports in the NS/SMP Console related to policy exeuction and status.
