Scenario: An employee submits a vacation request. The request is presented to a manager in a Web dialog. After clicking Approve or Reject in the webform, the process sends an email to the employee with the results of the manager's decision.
Process: This process is created as a Workflow-type project.

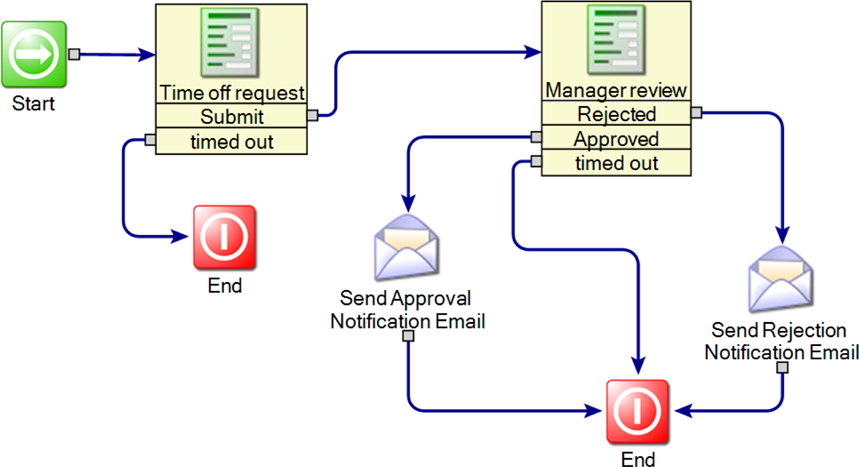

The following screen shot shows the process:
If the manager rejects the request, the Rejected path sends a rejection email and then ends the process. If the manager approves the request, the Approved path sends an approval email and then the process ends.
The Send Email component knows where to send the email based on how it is configured.
The following screen shot shows the Send Email component editor:
For more information on configuring the Send Email component, see the Workflow Solution User's Guide.
For more information on presenting a webform to a user with the Dialog Workflow component, see the introduction to this document.
See Presenting a Dialog Workflow dialog to a user with an email.
Other components in this example are as follows:
