Throttling Period could not have any overlap. Overlapped time windows are specified.

Products

• IT Management Suite

Issue/Introduction

From 8.5, throttling periods times are changed. before 8.5, we could schedule times with ended to each other.

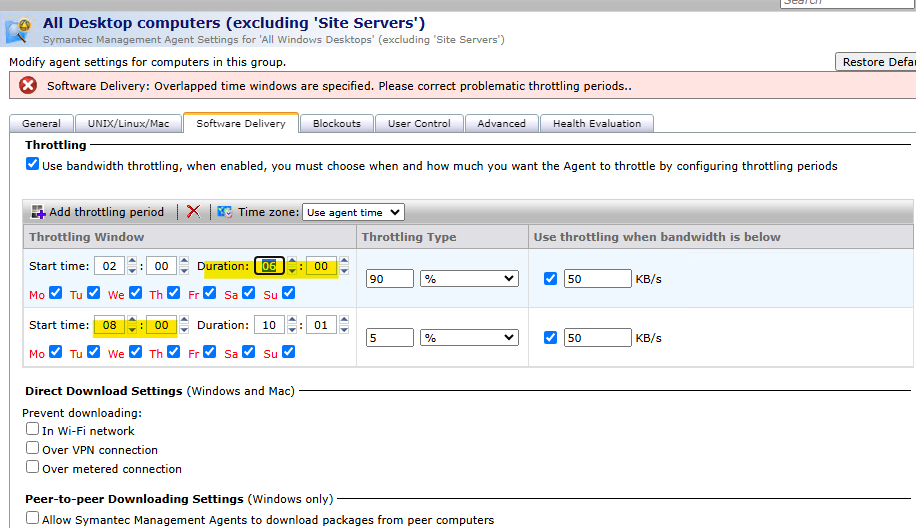

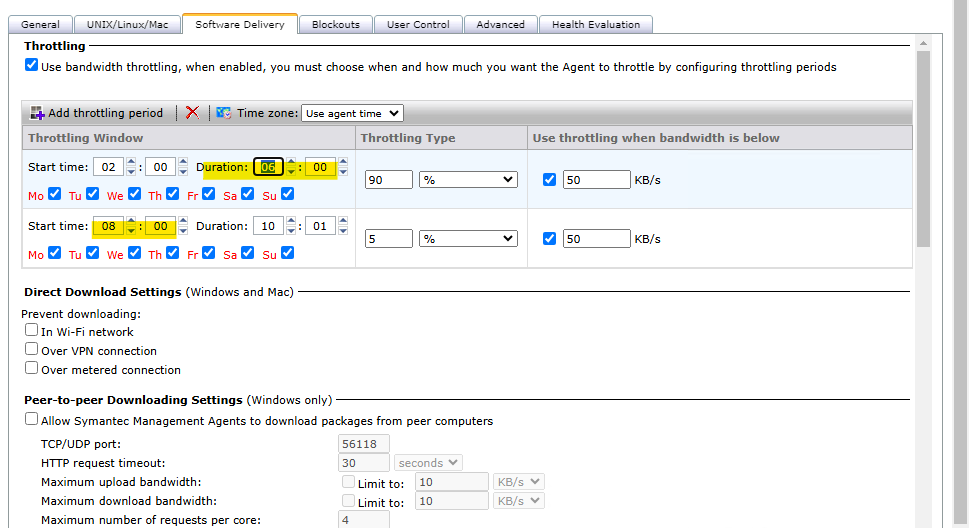

like the below image which is set from 2:00 with duration of 6 hours, and the second one has the start time of 8:00.





But in 8.5.x we should specify exactly with out any overlap. If there will be any overlap in the defined times, it gives error:





Downloads: Overlapped time windows are specified. Please correct problematic throttling periods.

Environment

8.5.x

Cause

Overlapping schedules are not allowed. Even when you have a schedule that ends at 8am and another that starts as 8am may cause this issue as well.

Resolution

Define the times somehow there will be no overlap.



Now from 02:00 to 8:00:59 will be 80% and from 8:01:00 to 1:59:59 will be 5%
