Package Servers are not receiving a list of packages. Failed to create object 'Altiris.AeXNSCPkgSvr': The object is not registered or is not present in the policy (0x8000401B)
search cancel

Package Servers are not receiving a list of packages. Failed to create object 'Altiris.AeXNSCPkgSvr': The object is not registered or is not present in the policy (0x8000401B)

book

Article ID: 172185

calendar_today

Updated On:

Products

IT Management Suite

Issue/Introduction

Package Server warning:

Failed to create object 'Altiris.AeXNSCPkgSvr': The object is not registered or is not present in the policy (0x8000401B)

Package Servers were not receiving a list of packages, but instead throwing a short warning in the agent logs (below)

The log entries from the SMP and PS that related to this problem are as follows:

SMP:

 Source: Altiris.NS.AgentManagement.PolicyRequest.BuildPolicyXml
Description: Unable to generate policy XML for item: 'Site Server Settings Client Policy' (9500a868-a21d-4d1c-acc0-0045873b1289), resource: 1e06f280-8e4c-4232-883e-8fd689b19054
Object reference not set to an instance of an object........

Source: Altiris.NS.StandardItems.PackageServer.PkgSvrEventPolicy.OnBuildClientConfigXml2
Description: Failed to generate package server config for: 1e06f280-8e4c-4232-883e-8fd689b19054
Object reference not set to an instance of an object..........

Source: Altiris.NS.AgentManagement.PolicyRequest.BuildPolicyXml
Description: Unable to generate policy XML for item: 'Package Server Status Event Capture Item' (f85fe5d9-005a-40ac-b213-944b496405fe), resource: 1e06f280-8e4c-4232-883e-8fd689b19054
Failed to get ClientConfigXml for Package Server.

PS:

Client::GetObject: 'Altiris.AeXNSCPkgSvr'
-----------------------------------------------------------------------------------------------------
Date: 9/29/2022 1:01:59 PM, Tick Count: 456840015 (5.06:54:00.0150000), Size: 267 B
Process: AeXNSAgent.exe (9752), Thread ID: 3988, Module: AeXNSAgent.exe
Priority: 16, Source: Agent


Failed to create object 'Altiris.AeXNSCPkgSvr': The object is not registered or is not present in the policy (0x8000401B)
-----------------------------------------------------------------------------------------------------
Date: 9/29/2022 1:01:59 PM, Tick Count: 456840015 (5.06:54:00.0150000), Size: 346 B
Process: AeXNSAgent.exe (9752), Thread ID: 3988, Module: AeXNSAgent.exe
Priority: 2, Source: Agent

The error in the above PS logs means that the package server didn't get a "Package Server Status Event Capture Item" section in its client policy xml because the SMP couldn't generate that part of the policy list so it was omitted. The "Package Server Status Event Capture Item" section is what contains the list of packages each PS should be downloading and maintaining.

Environment

Management Platform 8.1 RU7

Cause

Cause 1:

The SMP was unable to generate the policy that provides package servers with their list of packages because the underlying item was missing in the database:

"Global Site Server Settings" GUID: 0da377d0-5159-4498-bb36-345e294f3791

The root cause as to how this happened is unknown. Perhaps a recent upgrade may have had the transaction creating the object rolled back before it could be committed in the database, and the installation process did not receive notification that it had been.

DETECTION CHECK:  To determine if the condition exists, run the following SQL against the database. If no rows are returned then the problem is confirmed.

      EXECUTE spItemClassGet @Guid='0da377d0-5159-4498-bb36-345e294f3791'



Cause 2:

Other possibly cause but no common:

Under Manage>Organizational Views and Groups>Default>All Resources>Asset>Network Resource, "Computer" was missing. It caused that the package server was not able to be added to any of the necessary targets for getting its respective policies.

Resolution

For Cause 1:

  1. Download and copy the attached  "Global Site Server Settings.xml" file to a folder on the SMP server (C:\Temp)
  2. Open a Command Prompt (as administrator) and change folders to ".\Program Files\Altiris\Notification Server\bin\Tools"    {the first part of path will depend on what volume it is installed to}
  3. Run the following command:    ImportExportUtil /import "C:\Temp\Global Site Server Settings.xml"
  4. Open Windows Task Scheduler and run "NS.Package Server Status Event Capture Item.{f85fe5d9-005a-40ac-b213-944b496405fe}"

After the package servers updated their configuration they received the "Package Server Status Event Capture Item" section



For Cause 2:

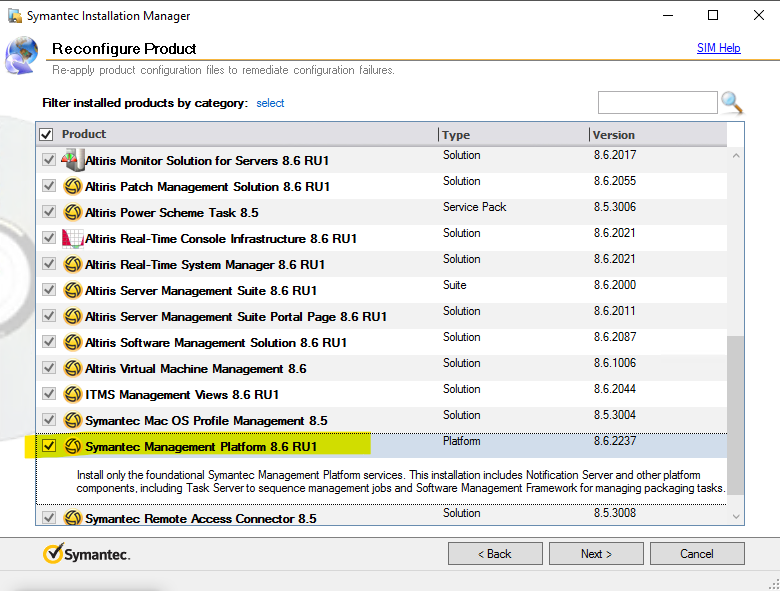

  1. Open SIM (Symantec Installation Manager) and run a reconfigure for the Symantec Management Platform so the missing reference can be recreated.




Attachments

Global Site Server Settings.xml get_app
