How to add a Remote Desktop Protocol (RDP) option into the OneClick console

book

Article ID: 17186

calendar_today

Updated On:

Products

CA Spectrum

Issue/Introduction

How to add a Remote Desktop Protocol (RDP) option into the OneClick console



Out of the box we can Telnet/SSH into workstation servers which are discovered in Spectrum. At times, we would need additional options like RDP etc as per the business requirements.

Environment

Release:
Component:

Resolution

Here are few simple steps using which you can RDP into the server models from Spectrum OneClick console.

  1. Logon to the OneClick server
  2. Navigate to the tomcat/webapps/spectrum/web-inf/console directory
  3. Copy the custom-menu-config.xml file to custom/console/config directory.
  4. Add the below code to this xml at the bottom i.e. "above </root>"
    <menu name="Tools">
     <item name="Remote Desktop">
      <toolbar-image>/spectrum/images/RDP.png</toolbar-image>
       <popup-visibility>when-enabled</popup-visibility>
        <action>
         <filter>
          <has-attribute>AttributeID.NETWORK_ADDRESS</has-attribute>
         </filter>
        <launch-application>
         <command>mstsc.exe /v {0}</command>
          <param>
           <attribute>AttributeID.NETWORK_ADDRESS</attribute>
          </param>
        </launch-application>
       </action>
      </item>
    </menu>
  5. Save the file and close any active OneClick clients.
  6. Reopen the OneClick alarm console in a new browser.

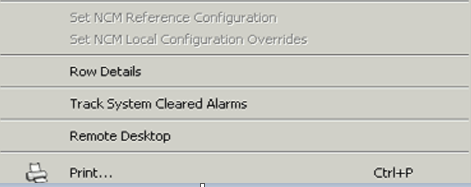

  7. Now right click on any device and you will get an option similar to Remote Desktop



<Please see attached file for image>

Figure 1

Additional Information

Please reference the "OneClick Customization" section of the documentation for more information.

Watch the "Customizing menus in OneClick" video.
