How to configure proxy for LiveUpdate in Data Center Security (DCS) Manager

Products

• Data Center Security Server Advanced

Issue/Introduction

To access the internet and reach the Symantec LiveUpdate servers you have to configure a proxy server.

Environment

DCS 6.9.x

Resolution

The proxy settings configuration will be different depending on which version of DCS 6.9 is being used.

For DCS 6.9.2 and DCS 6.9.3

The DCS Manager will use the system proxy settings for all but the Reputation Data.

To download Reputation Data:

1. Go to <Server installation folder>\Symantec\Data Center Security Server\Server\tomcat\conf\
2. Edit sis-server.properties
3. Add the following lines (they are already present but commented out with #)
   sisserver.http.proxyset=true
   sisserver.http.proxyhost=192.0.2.2
   sisserver.http.proxyport=3128
4. Save the file
5. Restart the DCS Manager Service

For DCS 6.9.0, and DCS 6.9.1, this will need to be configured in 2 locations on the DCS Manager machine:

1- To download Titanium information, SymEFA and Revocation lists:

Browse to <Server installation folder>\liveupdate

and start command prompt.

"..\jre\bin\java.exe" -classpath jlu.jar com.symantec.liveupdate.config.editor.ConfEditor

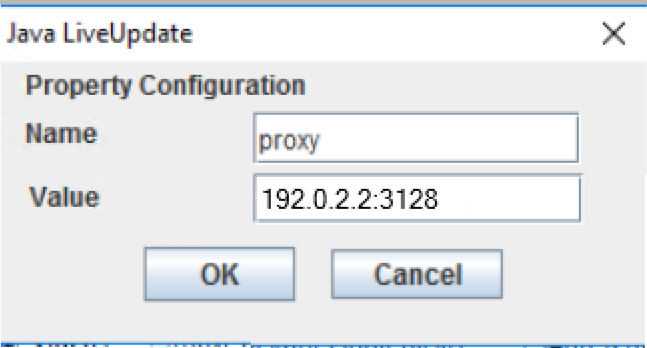

A new dialog box opens.

In the dialog box, add a new property as:

Property name: proxy.
Property value: proxyhost:proxyport.

Click Ok

Click Save

2 - To download Reputation Data:

To download Reputation Data:

1. Go to <Server installation folder>\Symantec\Data Center Security Server\Server\tomcat\conf\
2. Edit sis-server.properties
3. Add the following lines (they are already present but commented out with #)
   sisserver.http.proxyset=true
   sisserver.http.proxyhost=192.0.2.2
   sisserver.http.proxyport=3128
4. Save the file
5. Restart the DCS Manager Service
