Integration Wizard data flow

book

Article ID: 171324

calendar_today

Updated On:

Products

Information Centric Analytics Data Loss Prevention Core Package

Issue/Introduction

When data from external sources are ingested into Information Centric Analytics (ICA) through the Integration Wizard (IW), what does the data flow look like?

Environment

Version : 6.x

Component : Integration Wizard

Resolution

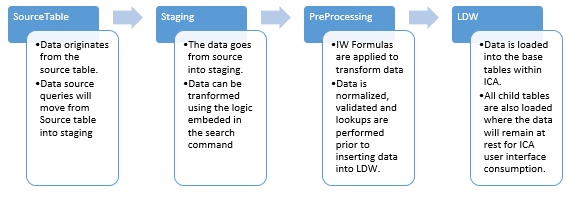

When data are ingested into the ICA database (RiskFabric), the data flow is as follows:

Source data are first queried and stored in staging tables in the RiskFabric database on a schedule defined by the user. The data are next inserted into pre-processing tables corresponding to the entity type defined in import rule mappings. This process takes place during the nightly RiskFabric Processing job and potentially during the RiskFabric Intraday Processing job, depending upon the configuration of the integration. Data are normalized and transformation formulas are applied during this process to ensure the data are prepared for insertion into ICA's core tables. Finally, the data are inserted into the destination Logical Data Warehouse (LDW) tables (also referred to as Core tables) where they will remain at rest. Data in the core tables are queried by the RiskFabric cube and by the ICA user interface.
