Step-by-step: Configure a Cisco ASA (v9.1) to connect to the Cloud

book

Article ID: 171206

calendar_today

Updated On:

Products

Web Security Service - WSS

Issue/Introduction

How do I configure a Cisco ASA device (version 9.1.1) to send IPsec traffic to the Cloud?

How do I configure an ASA to send only one (1) workstation to the Cloud...for testing purposes?

Resolution


As of the writing of this knowledge base article (Feb 2013), we are using the most current versions of ASA and ASDM:
  • Cisco ASA version: 9.1(1)
  • ASDM version: 7.1(1)52

User-added image

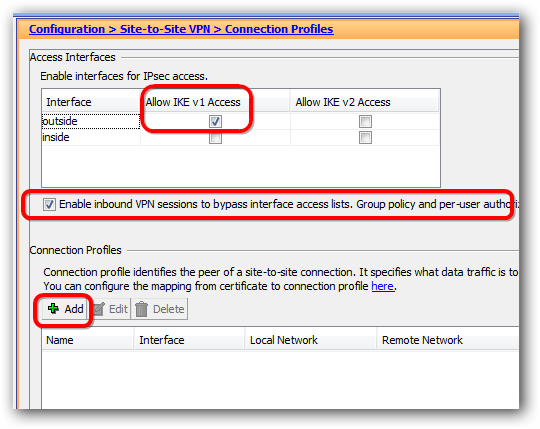

GOTO: Configuration > Site-to-Site VPN > Connection Profiles






Make sure that the following checkbox is ENABLED:

"Enable inbound VPN sessions to bypass interface access lists..."

User-added image


CREATE a Site-to-Site Connection Profile:

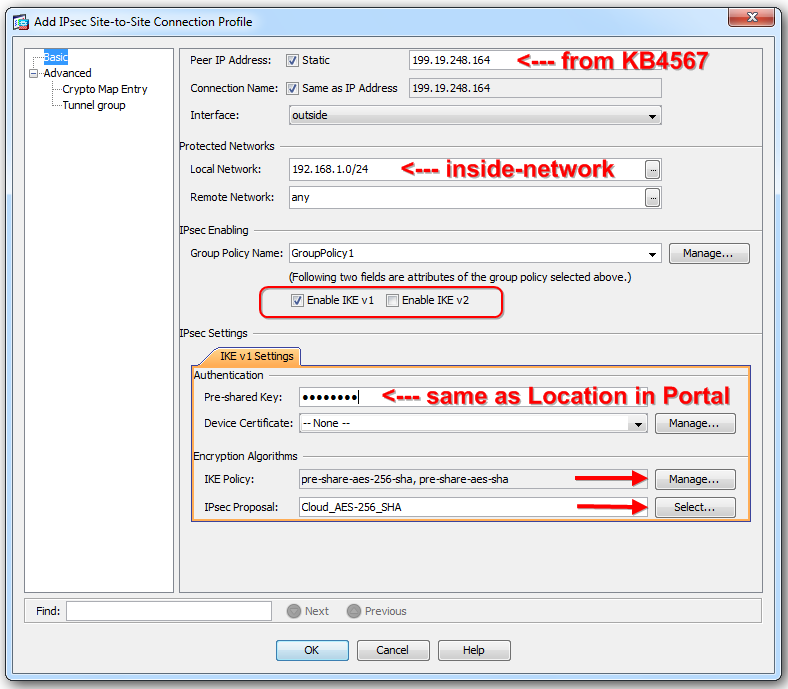

Click the "Add" button under "Connection Profiles", and the "Add IPsec Site-to-Site Connection Profile" dialog opens.

In the "Basic" section...

User-added image

(Peer IP Address) Refer to the following KB for the "Peer IP Address" box:

000014776: What are the IP addresses used to connect via IPsec to the Threatpulse Cloud?

In this example, we will select the IP address for the Sunnyvale location: 199.19.248.164

(Local Network) inside-network

(Remote Network) any

IKE v1 Settings > Authentication (Pre-shared Key)

This value should match the PSK value you've configured in your "Location" in your Customer Portal.

IKE v1 Settings > Encryption Algorithms (IKE Policy)

NOTE: make sure that the following recommended IKE Policy values have a high (top-level) priority, or manage them as follows...

Click the "Manage..." button

Recommended IKE Policy values are:

pre-share-aes-256-sha
pre-share-aes-sha

User-added image

IKE v1 Settings > Encryption Algorithms (IPsec Proposal)

Click the "Select..." button

User-added image

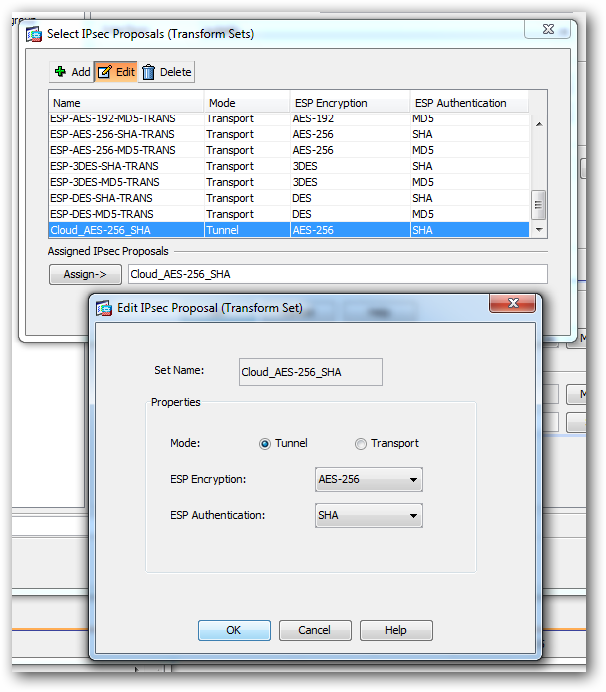

For the IPsec Proposal (Transform Set), the recommended settings are:

Mode->Tunnel

ESP Encryption: AES-256

ESP Authentication: SHA

Remain in the "Add IPsec Site-to-Site Connection Profile" dialog, and click on the "Advanced->Crypto Map Entry" section:

User-added image

Perfect Forward Secrecy: Enable

Diffie-Hellman Group: group5

NAT-T: Disable

Your new "Connection Profile" should look similar to:

User-added image

====================
GOTO: Configuration > Site-to-Site VPN > Advanced > Crypto Maps

...and the following Crypto Map will have appeared (if not, click Add to create one):

User-added image

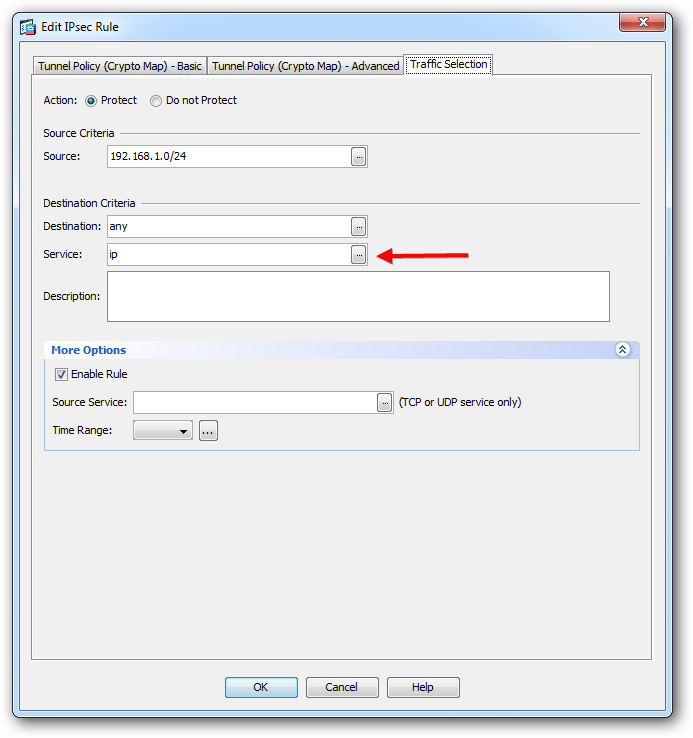

Edit this Crypto Map, and on the "Tunnel Policy (Crypto Map) - Basic" tab, the values should have been automatically copied here.  Verify their values:


User-added image

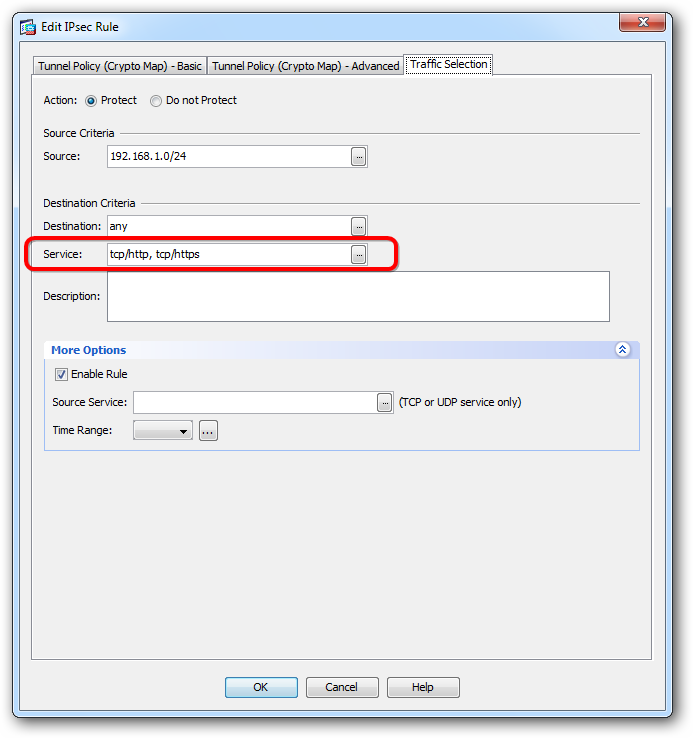

On the "Traffic Selection" tab, edit the "Service" field to be: tcp/http, tcp/https

User-added image
User-added image
User-added image

Your completed Crypto Map should look like:

User-added image

====================
GOTO: Configuration > Site-to-Site VPN > Advanced > Certificate to Connection Profile Maps > Policy

Make sure the "Use the configured rules to match a certificate to a Connection Profile" is DISABLED:

User-added image

====================
GOTO: Configuration > Firewall > NAT Rules

Create the Firewall NAT Rules.

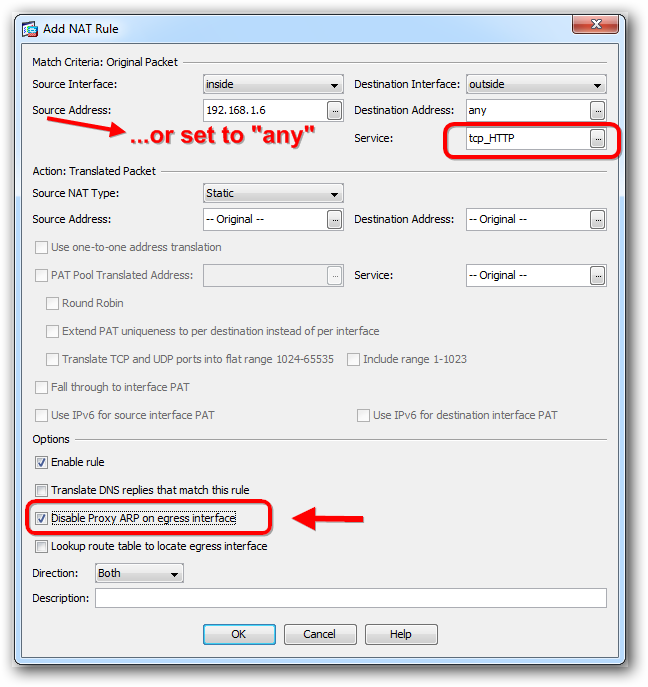

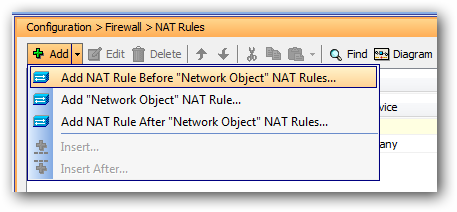

Click Add, and then select Add NAT Rule Before "Network Object" NAT Rules...

User-added image
User-added image

Source Interface: inside

Destination Interface: outside

Source Address:
 - set to one (1) IP address to send one workstation into the Cloud tunnel (for testing), or
 - set to "any" to send all internal traffic

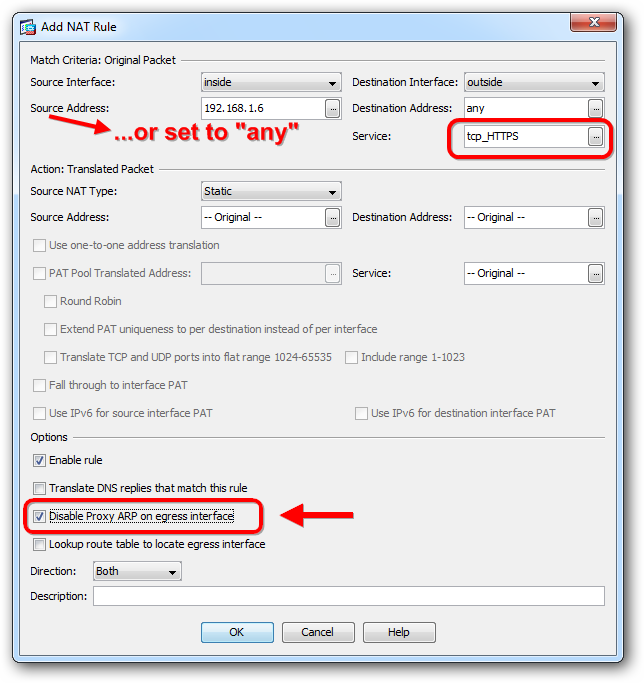

Service: set to "tcp/HTTP" (you might have to create a new Service Object) Note: When creating or using existing service object verify source port is defualt (1-65535) for both http and https.

...and now repeat the same steps above (Add a new NAT Rule) for the "tcp/HTTPS" service:


User-added image

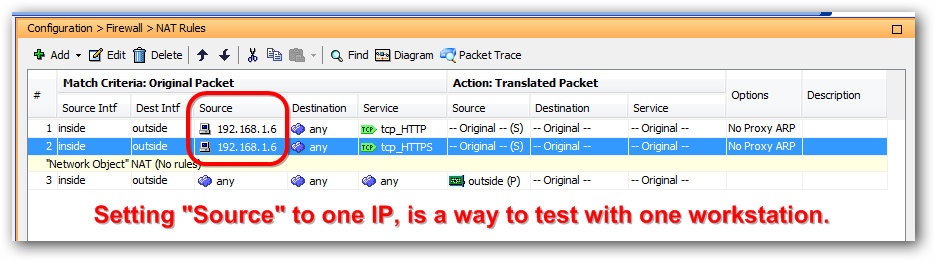

Your completed NAT Rules should look similar to:

User-added image

====================
TEST to see if you are now protected by the Cloud service.

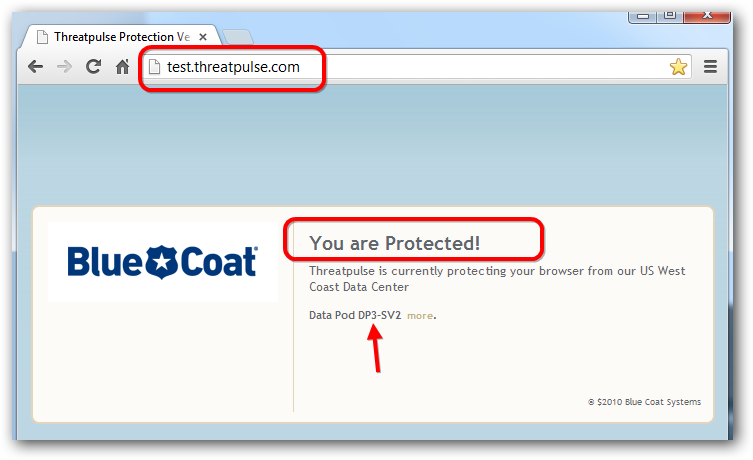

Open a browser and go to: http://test.threatpulse.com

This will show if your computer is protected by the Cloud (or not), and what Cloud DataPod you are connected to.

User-added image

====================
GOTO: Monitoring > VPN > VPN Statistics > Sessions

In the "Monitoring" section in ASDM, verify that the IPsec Site-to-Site VPN tunnel is established:

User-added image
