How to extract a query from a Identity Manager or Identity Governance report via Jasper Server Console
search cancel

How to extract a query from a Identity Manager or Identity Governance report via Jasper Server Console


Article ID: 17011


Updated On:


CA Identity Manager CA Identity Governance CA Identity Portal CA Risk Analytics CA Secure Cloud SaaS - Arcot A-OK (WebFort) CLOUDMINDER ADVANCED AUTHENTICATION CA Secure Cloud SaaS - Advanced Authentication CA Secure Cloud SaaS - Identity Management CA Secure Cloud SaaS - Single Sign On


A report is but the query it runs. At times running/requesting a report in IM or GM might result in an error, or alternatively the report will come back empty when it should have data. A beneficial step in troubleshooting such cases is by extracting the query of the report, and run it directly against the underlying data source. This way the requesting product (IM/GM) is taken out of the picture and report database/report server issues can be identified.

How can I extract the query that a report is running, and use it directly against the report data source to troubleshoot reporting issues?


Release: CAIDMB99000-14.1-Identity Manager-B to B


1. Open http://reportServer:port/jasperserver-pro in a web browser.

2. Login as:

username: superuser

password: superuser

3. From the top menu. select View --> Repository

4. On the left pane, navigate to your "reports" folder.

For IM:  IAM->IM->reports

For GM: GM->reports

A list of reports will display.

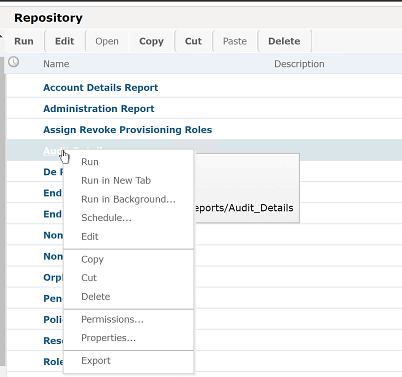

5. Right-click the report you want the query of, and select Export.

<Please see attached file for image>

src="/servlet/servlet.FileDownload?file=0150c000004AKnCAAW" alt="1.png" width="404" height="379">

6. A message window will display:

<Please see attached file for image>

src="/servlet/servlet.FileDownload?file=0150c000004AKnDAAW" alt="2.png" width="286" height="207">

7. Leave these default values (give a unique name to the export file), and click Export.

8. This will create the in the jasper folder.

9. Extract the zip file and search for the <report name>.xml.

10. Open the file in a text editor and search for the first occurrence of the word 'select'.

11. This will be the Query parameter of the block, and that is the query the report runs.
