Browser showing error "Network Error (ssl_server_cert_untrusted_issuer)"

book

Article ID: 167750

calendar_today

Updated On:

Products

Advanced Secure Gateway Software - ASG ProxySG Software - SGOS

Issue/Introduction

Root Cause: As SSL client, the Symantec ProxySG did not trust certificates issued by the Certificate Authority (CA) which is not stored inside CA list.

Resolution

Importing the CA from the website into ProxySG's CA addressed the problem.

To import  CA certificate into ProxySG CA store:

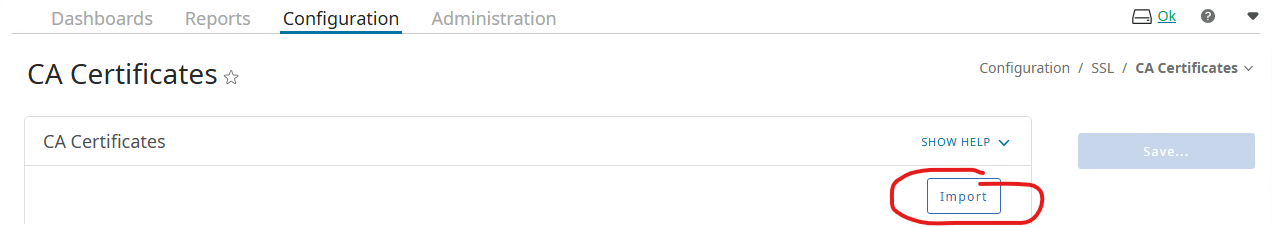

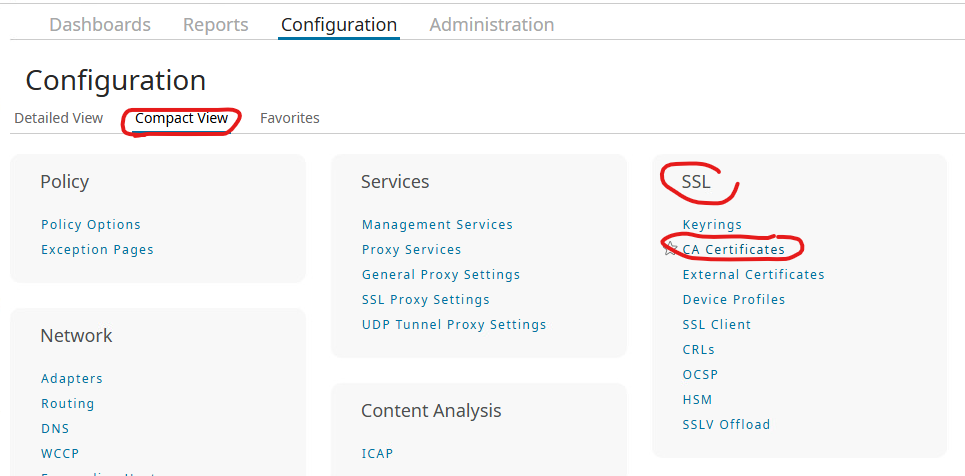

  1. Go to Configuration > SSL > CA Certificates > CA Certificates tab, and click the Import button.
    • ‚Äč
  2. Enter New CA Certificate name, and copy and paste the certificate into the column in PEM format.
    •    Example:
          -----BEGIN CERTIFICATE-----
      MIIEdDCCA1ygAwIBAgIQRL4Mi1AAJLQR0zYq/mUK/TANBgkqhkiG9w0BAQUFADCB
      lzELMAkGA1UEBhMCVVMxCzAJBgNVBAgTAlVUMRcwFQYDVQQHEw5TYWx0IExha2Ug
      Q2l0eTEeMBwGA1UEChMVVGhlIFVTRVJUUlVTVCBOZXR3b3JrMSEwHwYDVQQLExho
      dHRwOi8vd3d3LnVzZXJ0cnVzdC5jb20xHzAdBgNVBAMTFlVUTi1VU0VSRmlyc3Qt
      SGFyZHdhcmUwHhcNOTkwNzA5MTgxMDQyWhcNMTkwNzA5MTgxOTIyWjCBlzELMAkG
      A1UEBhMCVVMxCzAJBgNVBAgTAlVUMRcwFQYDVQQHEw5TYWx0IExha2UgQ2l0eTEe
      MBwGA1UEChMVVGhlIFVTRVJUUlVTVCBOZXR3b3JrMSEwHwYDVQQLExhodHRwOi8v
      d3d3LnVzZXJ0cnVzdC5jb20xHzAdBgNVBAMTFlVUTi1VU0VSRmlyc3QtSGFyZHdh
      cmUwggEiMA0GCSqGSIb3DQEBAQUAA4IBDwAwggEKAoIBAQCx98M4P7Sof885glFn
      0G2f0v9Y8+efK+wNiVSZuTiZFvfgIXlIwrthdBKWHTxqctU8EGc6Oe0rE81m65UJ
      M6Rsl7HoxuzBdXmcRl6Nq9Bq/bkqVRcQVLMZ8Jr28bFdtqdt++BxF2uiiPsA3/4a
      MXcMmgF6sTLjKwEHOG7DpV4jvEWbe1DByTCP2+UretNb+zNAHqDVmBe8i4fDidNd
      oI6yqqr2jmmIBsX6iSHzCJ1pLgkzmykNRg+MzEk0sGlRvfkGzWitZky8PqxhvQqI
      DsjfPe58BEydCl5rkdbux+0ojatNh4lz0G6k0B4WixThdkQDf2Os5M1JnMWS9Ksy
      oUhbAgMBAAGjgbkwgbYwCwYDVR0PBAQDAgHGMA8GA1UdEwEB/wQFMAMBAf8wHQYD
      VR0OBBYEFKFyXyYbKJhDlV0HN9WFlp1L0sNFMEQGA1UdHwQ9MDswOaA3oDWGM2h0
      dHA6Ly9jcmwudXNlcnRydXN0LmNvbS9VVE4tVVNFUkZpcnN0LUhhcmR3YXJlLmNy
      bDAxBgNVHSUEKjAoBggrBgEFBQcDAQYIKwYBBQUHAwUGCCsGAQUFBwMGBggrBgEF
      BQcDBzANBgkqhkiG9w0BAQUFAAOCAQEARxkP3nTGmZev/K0oXnWO6y1n7k57K9cM
      //bey1WiCuFMVGWTYGufEpytXoMs61quwOQt9ABjHbjAbPLPSbtNk28Gpgoiskli
      CE7/yMgUsogWXecB5BKV5UU0s4tpvc+0hY91UZ59Ojg6FEgSxvunOxqNDYJAB+gE
      CJChicsZUN/KHAG8HQQZexB2lzvukJDKxA4fFm517zP4029bHpbj4HR3dHuKom4t
      3XbWOTCC8KucUvIqx69JXn7HaOWCgchqJ/kniCrVWFCVH/A7HFe7fRQ5YiuayZSS
      KqMiDP+JJn1fIytH1xUdqWqeUQ0qUZ6B+dQ7XnASfxAynB67nfhmqA==
      -----END CERTIFICATE-----
  3. Click OK and Apply to save changes and configurations.
  4. Go to CA Certificate Lists, select 'browser-trusted' then select 'Edit'
  5. Move the new CA you have added from the left to the right and click 'OK' then 'Apply'
