New Report Layouts after PTF RO99395
Article ID: 16603
Updated On:
Products
Issue/Introduction
PTF RO99395 provides support for DASD volumes up to 1 TB EAV.
The CA Disk batch reports that had to be modified to support the larger fields are:
ALLOCS, DSINDX, DSUTIL, FREESP, LAYOUT, MEMBER, MVDICT, POCCHH, PODUMP, POTTRD and SVDICT
What are the report layouts after PTF RO99395
Environment
Component:
Resolution
The following are the new report layouts showing just a few lines of each.
The 3 dots [...] simply indicates where report lines have been removed for these examples.
= = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = =

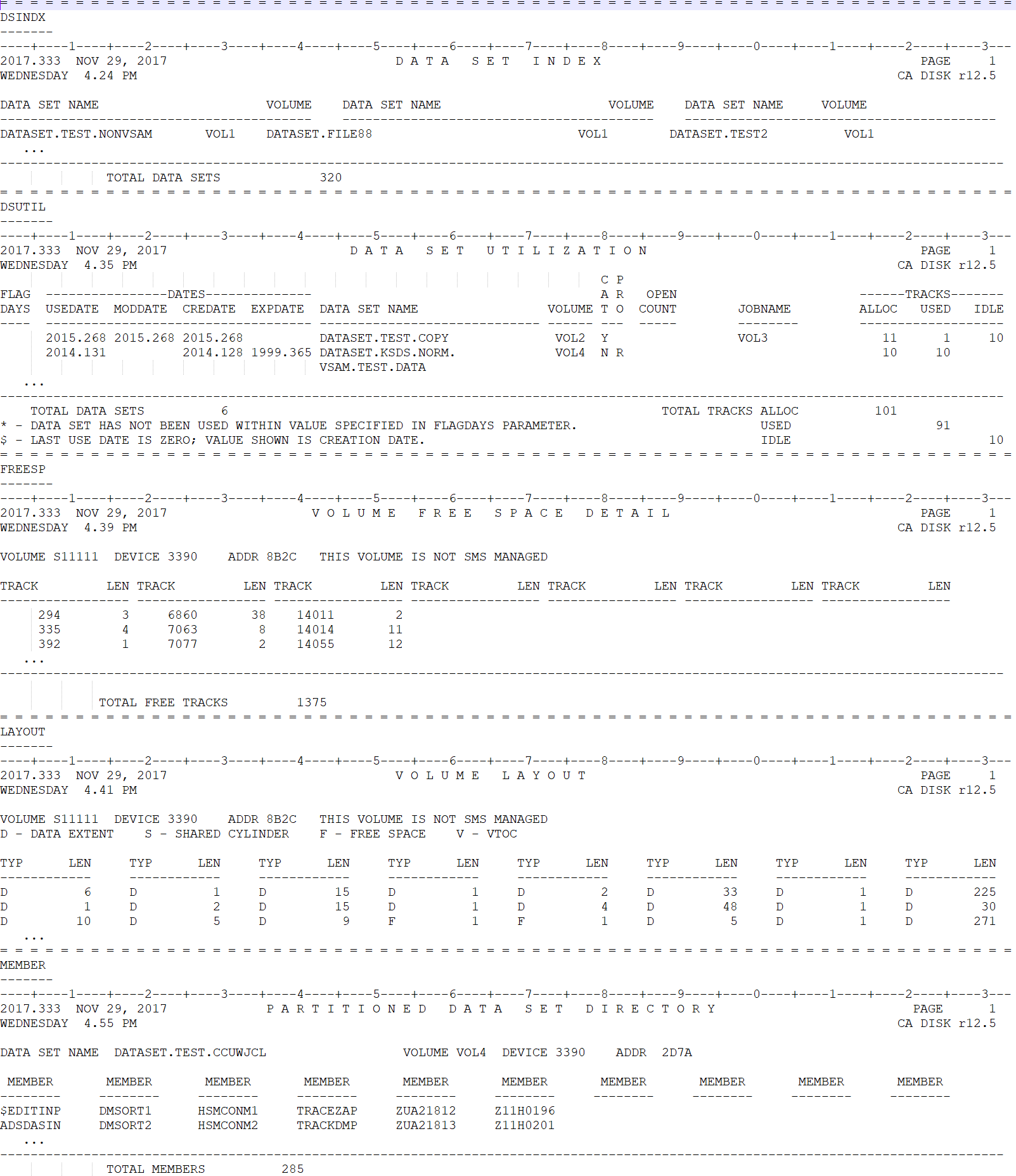

DSINDX
-------
----+----1----+----2----+----3----+----4----+----5----+----6----+----7----+----8----+----9----+----0----+----1----+----2----+----3---
2017.333 NOV 29, 2017 D A T A S E T I N D E X PAGE 1
WEDNESDAY 4.24 PM CA DISK r12.5
DATA SET NAME VOLUME DATA SET NAME VOLUME DATA SET NAME VOLUME
----------------------------------------- ----------------------------------------- -----------------------------------------
ALLOCCC.P3441$E.TEST.NONVSAM S11111 CASJJJJ.P12093.FILE88 S11111 CHAT222.PDS.C451115.TEST2 S11111
...
------------------------------------------------------------------------------------------------------------------------------------
TOTAL DATA SETS 320
= = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = =
DSUTIL
-------
----+----1----+----2----+----3----+----4----+----5----+----6----+----7----+----8----+----9----+----0----+----1----+----2----+----3---
2017.333 NOV 29, 2017 D A T A S E T U T I L I Z A T I O N PAGE 1
WEDNESDAY 4.35 PM CA DISK r12.5
C P
FLAG ----------------DATES-------------- A R OPEN ------TRACKS-------
DAYS USEDATE MODDATE CREDATE EXPDATE DATA SET NAME VOLUME T O COUNT JOBNAME ALLOC USED IDLE
---- ----------------------------------- ----------------------------- ------ --- ----- -------- -------------------
2015.268 2015.268 2015.268 CHAT222.VBS.MV.TEST.COPY S55555 Y CHAT222C 11 1 10
2014.131 2014.128 1999.365 QQQMPRRR.P3474$A.KSDS.NORM. S55555 N R 10 10
VSAM.TEST.DATA
...
------------------------------------------------------------------------------------------------------------------------------------
TOTAL DATA SETS 6 TOTAL TRACKS ALLOC 101
* - DATA SET HAS NOT BEEN USED WITHIN VALUE SPECIFIED IN FLAGDAYS PARAMETER. USED 91
$ - LAST USE DATE IS ZERO; VALUE SHOWN IS CREATION DATE. IDLE 10
= = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = =
FREESP
-------
----+----1----+----2----+----3----+----4----+----5----+----6----+----7----+----8----+----9----+----0----+----1----+----2----+----3---
2017.333 NOV 29, 2017 V O L U M E F R E E S P A C E D E T A I L PAGE 1
WEDNESDAY 4.39 PM CA DISK r12.5
VOLUME S11111 DEVICE 3390 ADDR 8B2C THIS VOLUME IS NOT SMS MANAGED
TRACK LEN TRACK LEN TRACK LEN TRACK LEN TRACK LEN TRACK LEN TRACK LEN
----------------- ----------------- ----------------- ----------------- ----------------- ----------------- -----------------
294 3 6860 38 14011 2
335 4 7063 8 14014 11
392 1 7077 2 14055 12
...
------------------------------------------------------------------------------------------------------------------------------------
TOTAL FREE TRACKS 1375
= = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = =
LAYOUT
-------
----+----1----+----2----+----3----+----4----+----5----+----6----+----7----+----8----+----9----+----0----+----1----+----2----+----3---
2017.333 NOV 29, 2017 V O L U M E L A Y O U T PAGE 1
WEDNESDAY 4.41 PM CA DISK r12.5
VOLUME S11111 DEVICE 3390 ADDR 8B2C THIS VOLUME IS NOT SMS MANAGED
D - DATA EXTENT S - SHARED CYLINDER F - FREE SPACE V - VTOC
TYP LEN TYP LEN TYP LEN TYP LEN TYP LEN TYP LEN TYP LEN TYP LEN
------------ ------------ ------------ ------------ ------------ ------------ ------------ ------------
D 6 D 1 D 15 D 1 D 2 D 33 D 1 D 225
D 1 D 2 D 15 D 1 D 4 D 48 D 1 D 30
D 10 D 5 D 9 F 1 F 1 D 5 D 1 D 271
...
= = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = =
MEMBER
-------
----+----1----+----2----+----3----+----4----+----5----+----6----+----7----+----8----+----9----+----0----+----1----+----2----+----3---
2017.333 NOV 29, 2017 P A R T I T I O N E D D A T A S E T D I R E C T O R Y PAGE 1
WEDNESDAY 4.55 PM CA DISK r12.5
DATA SET NAME QQQMPRRR.DISKOSC5.TEST.CCUWJCL VOLUME S44444 DEVICE 3390 ADDR 2D7A
MEMBER MEMBER MEMBER MEMBER MEMBER MEMBER MEMBER MEMBER MEMBER MEMBER
-------- -------- -------- -------- -------- -------- -------- -------- -------- --------
$EDITINP DMSORT1 HSMCONM1 TRACEZAP ZUA21812 Z11H0196
ADSDASIN DMSORT2 HSMCONM2 TRACKDMP ZUA21813 Z11H0201
...
------------------------------------------------------------------------------------------------------------------------------------
TOTAL MEMBERS 285
= = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = =

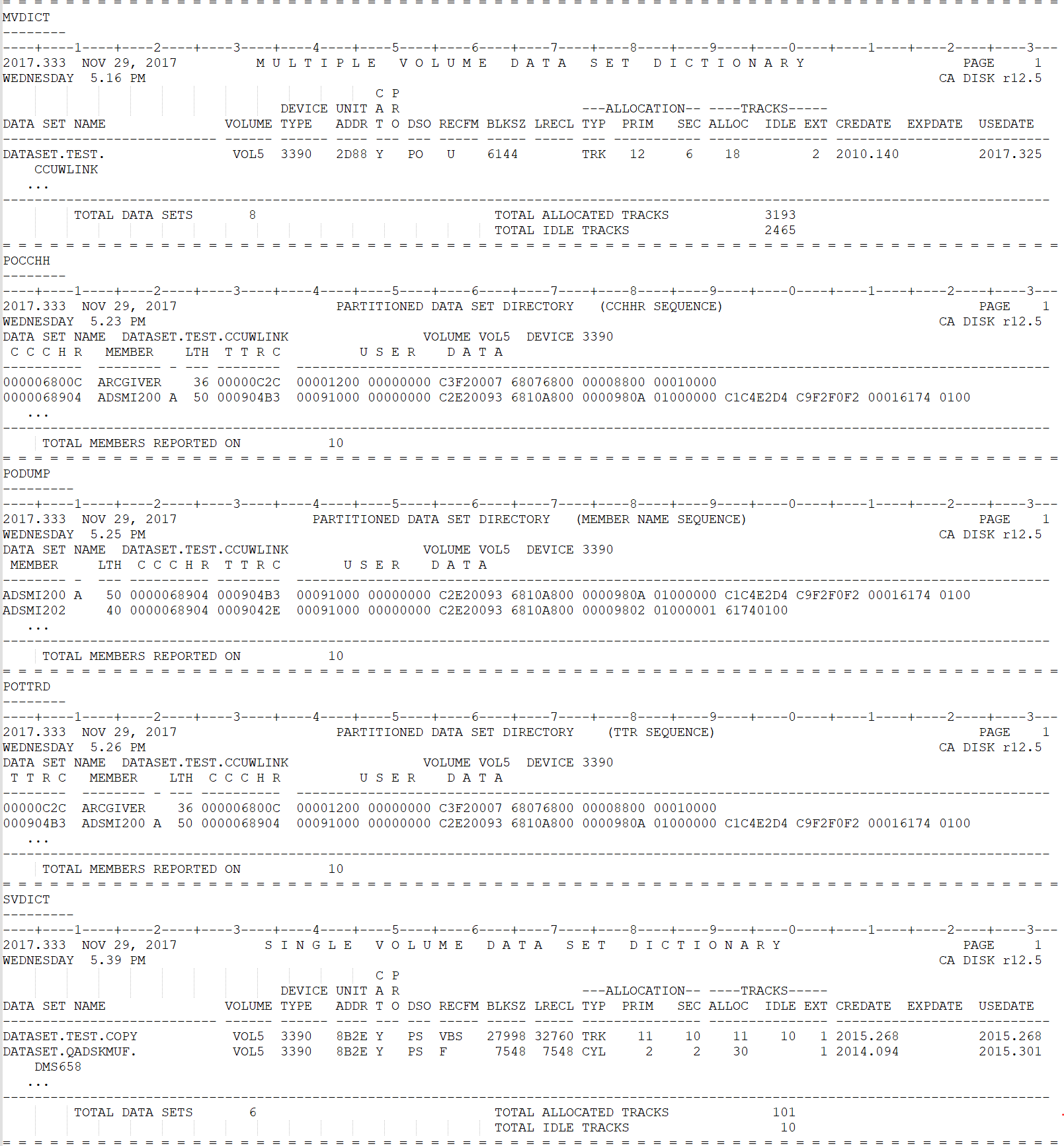

MVDICT
--------
----+----1----+----2----+----3----+----4----+----5----+----6----+----7----+----8----+----9----+----0----+----1----+----2----+----3---
2017.333 NOV 29, 2017 M U L T I P L E V O L U M E D A T A S E T D I C T I O N A R Y PAGE 1
WEDNESDAY 5.16 PM CA DISK r12.5
C P
DEVICE UNIT A R ---ALLOCATION-- ----TRACKS-----
DATA SET NAME VOLUME TYPE ADDR T O DSO RECFM BLKSZ LRECL TYP PRIM SEC ALLOC IDLE EXT CREDATE EXPDATE USEDATE
--------------------------- ------ ------ ---- --- --- ----- ----- ----- --- ----------- --------------- ---------------------------
QQQMPRRR.DISKOSC5.TEST. S55558 3390 2D88 Y PO U 6144 TRK 12 6 18 2 2010.140 2017.325
CCUWLINK
...
------------------------------------------------------------------------------------------------------------------------------------
TOTAL DATA SETS 8 TOTAL ALLOCATED TRACKS 3193
TOTAL IDLE TRACKS 2465
= = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = =
POCCHH
--------
----+----1----+----2----+----3----+----4----+----5----+----6----+----7----+----8----+----9----+----0----+----1----+----2----+----3---
2017.333 NOV 29, 2017 PARTITIONED DATA SET DIRECTORY (CCHHR SEQUENCE) PAGE 1
WEDNESDAY 5.23 PM CA DISK r12.5
DATA SET NAME QQQMPRRR.DISKOSC5.TEST.CCUWLINK VOLUME S55558 DEVICE 3390
C C C H R MEMBER LTH T T R C U S E R D A T A
---------- -------- - --- -------- -----------------------------------------------------------------------------------------------
000006800C ARCGIVER 36 00000C2C 00001200 00000000 C3F20007 68076800 00008800 00010000
0000068904 ADSMI200 A 50 000904B3 00091000 00000000 C2E20093 6810A800 0000980A 01000000 C1C4E2D4 C9F2F0F2 00016174 0100
...
------------------------------------------------------------------------------------------------------------------------------------
TOTAL MEMBERS REPORTED ON 10
= = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = =
PODUMP
---------
----+----1----+----2----+----3----+----4----+----5----+----6----+----7----+----8----+----9----+----0----+----1----+----2----+----3---
2017.333 NOV 29, 2017 PARTITIONED DATA SET DIRECTORY (MEMBER NAME SEQUENCE) PAGE 1
WEDNESDAY 5.25 PM CA DISK r12.5
DATA SET NAME QQQMPRRR.DISKOSC5.TEST.CCUWLINK VOLUME S55558 DEVICE 3390
MEMBER LTH C C C H R T T R C U S E R D A T A
-------- - --- ---------- -------- -----------------------------------------------------------------------------------------------
ADSMI200 A 50 0000068904 000904B3 00091000 00000000 C2E20093 6810A800 0000980A 01000000 C1C4E2D4 C9F2F0F2 00016174 0100
ADSMI202 40 0000068904 0009042E 00091000 00000000 C2E20093 6810A800 00009802 01000001 61740100
...
------------------------------------------------------------------------------------------------------------------------------------
TOTAL MEMBERS REPORTED ON 10
= = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = =
POTTRD
--------
----+----1----+----2----+----3----+----4----+----5----+----6----+----7----+----8----+----9----+----0----+----1----+----2----+----3---
2017.333 NOV 29, 2017 PARTITIONED DATA SET DIRECTORY (TTR SEQUENCE) PAGE 1
WEDNESDAY 5.26 PM CA DISK r12.5
DATA SET NAME QQQMPRRR.DISKOSC5.TEST.CCUWLINK VOLUME S55558 DEVICE 3390
T T R C MEMBER LTH C C C H R U S E R D A T A
-------- -------- - --- ---------- -----------------------------------------------------------------------------------------------
00000C2C ARCGIVER 36 000006800C 00001200 00000000 C3F20007 68076800 00008800 00010000
000904B3 ADSMI200 A 50 0000068904 00091000 00000000 C2E20093 6810A800 0000980A 01000000 C1C4E2D4 C9F2F0F2 00016174 0100
...
------------------------------------------------------------------------------------------------------------------------------------
TOTAL MEMBERS REPORTED ON 10
= = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = =
SVDICT
---------
----+----1----+----2----+----3----+----4----+----5----+----6----+----7----+----8----+----9----+----0----+----1----+----2----+----3---
2017.333 NOV 29, 2017 S I N G L E V O L U M E D A T A S E T D I C T I O N A R Y PAGE 1
WEDNESDAY 5.39 PM CA DISK r12.5
C P
DEVICE UNIT A R ---ALLOCATION-- ----TRACKS-----
DATA SET NAME VOLUME TYPE ADDR T O DSO RECFM BLKSZ LRECL TYP PRIM SEC ALLOC IDLE EXT CREDATE EXPDATE USEDATE
--------------------------- ------ ------ ---- --- --- ----- ----- ----- --------------- --------------- ---------------------------
CHAT222.VBS.MV.TEST.COPY S55555 3390 8B2E Y PS VBS 27998 32760 TRK 11 10 11 10 1 2015.268 2015.268
QQQMPRRR.DISKOS.QADSKMUF. S55555 3390 8B2E Y PS F 7548 7548 CYL 2 2 30 1 2014.094 2015.301
DMS658
...
------------------------------------------------------------------------------------------------------------------------------------
TOTAL DATA SETS 6 TOTAL ALLOCATED TRACKS 101
TOTAL IDLE TRACKS 10
= = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = =

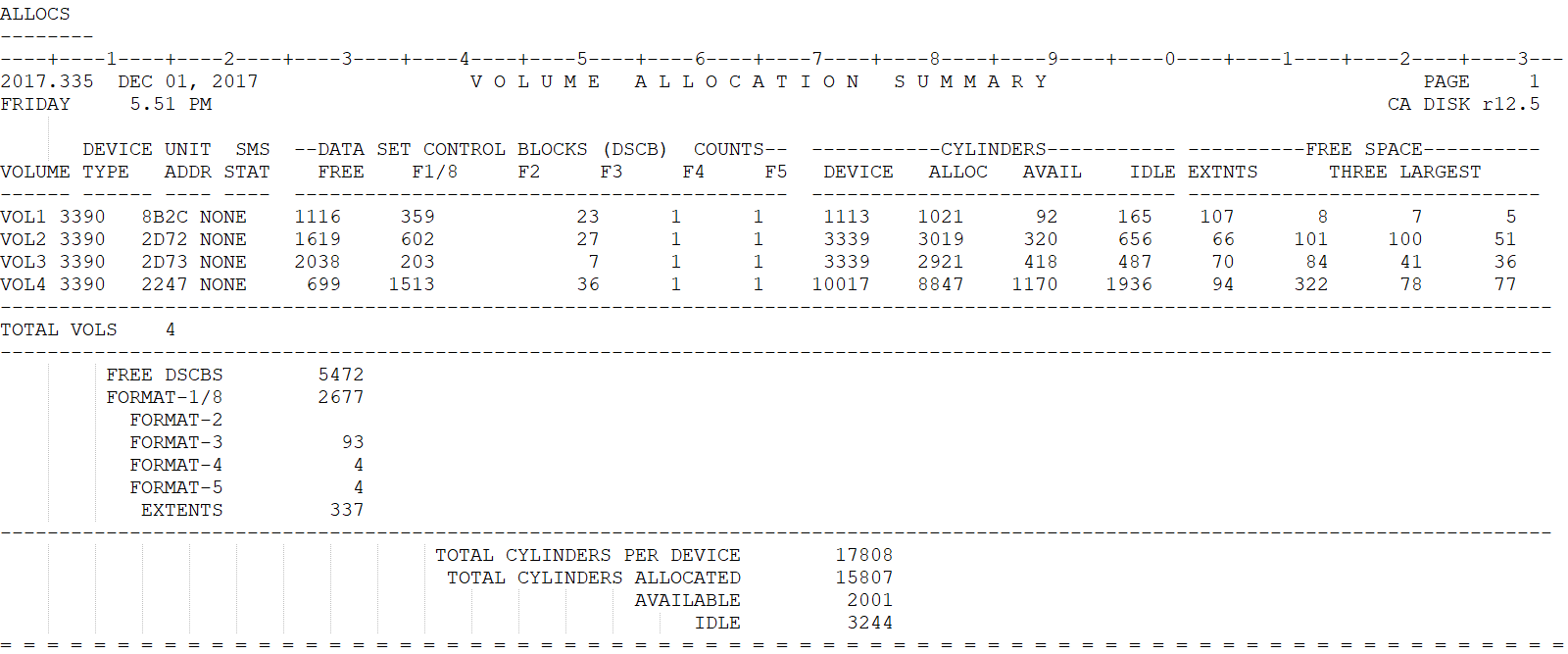

ALLOCS
--------
----+----1----+----2----+----3----+----4----+----5----+----6----+----7----+----8----+----9----+----0----+----1----+----2----+----3---
2017.335 DEC 01, 2017 V O L U M E A L L O C A T I O N S U M M A R Y PAGE 1
FRIDAY 5.51 PM CA DISK r12.5
DEVICE UNIT SMS --DATA SET CONTROL BLOCKS (DSCB) COUNTS-- -----------CYLINDERS----------- ----------FREE SPACE----------
VOLUME TYPE ADDR STAT FREE F1/8 F2 F3 F4 F5 DEVICE ALLOC AVAIL IDLE EXTNTS THREE LARGEST
------ ------ ---- ---- ------------------------------------------ ------------------------------- ------------------------------
S11111 3390 8B2C NONE 1116 359 23 1 1 1113 1021 92 165 107 8 7 5
S22222 3390 2D72 NONE 1619 602 27 1 1 3339 3019 320 656 66 101 100 51
S33333 3390 2D73 NONE 2038 203 7 1 1 3339 2921 418 487 70 84 41 36
S44444 3390 2247 NONE 699 1513 36 1 1 10017 8847 1170 1936 94 322 78 77
------------------------------------------------------------------------------------------------------------------------------------
TOTAL VOLS 4
------------------------------------------------------------------------------------------------------------------------------------
FREE DSCBS 5472
FORMAT-1/8 2677
FORMAT-2
FORMAT-3 93
FORMAT-4 4
FORMAT-5 4
EXTENTS 337
------------------------------------------------------------------------------------------------------------------------------------
TOTAL CYLINDERS PER DEVICE 17808
TOTAL CYLINDERS ALLOCATED 15807
AVAILABLE 2001
IDLE 3244
= = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = =
[ End of KD ]
