Sybase probe DB Checkpoints are grayed out

book

Article ID: 15140

calendar_today

Updated On:

Products

DX Infrastructure Management NIMSOFT PROBES CA Unified Infrastructure Management SaaS (Nimsoft / UIM)

Issue/Introduction

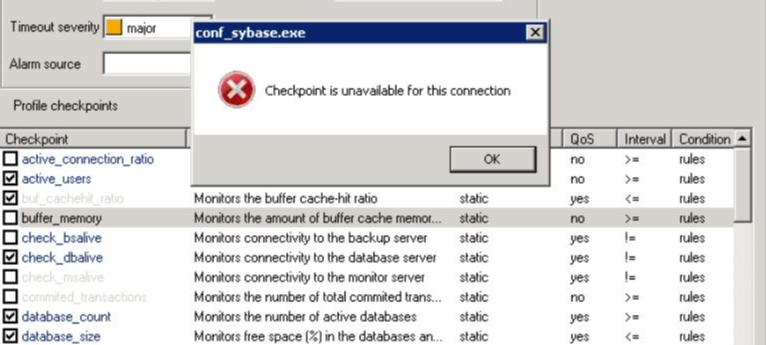

It is observed that few of the sybase DB checkpoints were grayed out in Sybase ASE version 15.7 and later.



Why does Advance monitoring of the Sybase probe DB checkpoints were grayed out ?





Environment

UIM: 8.47 Sybase probe version : 4.20 and laterSybase DB Version: 15.7 and later

Resolution

Starting sybase probe version 4.2 onwards, the probe does not support advanced monitoring using Monitoring Server. This is because the Monitoring Server is not a part of the Adaptive Server Enterprise version 15.7 and later.

But our probe supports all version of ASE 15. e.g. 15.1 , 15.2. In these versions, Monitor server is available, so, these checkpoints are available with all varieties of version 15.x except 15.7 and above.

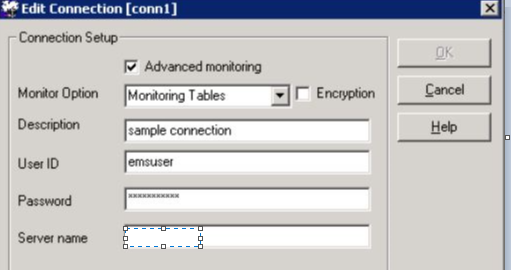

Customer need select the Monitoring Option as Monitoring Server in connection tab in probe else you will not be able to use these checkpoints.



To enable this option, customer need to contact their sybase DBA to get the Monitoring Server name and credentials.



So customer might need to use the Sybase versions less than 15.7 to get advanced monitoring of sybase probe.

Additional Information

https://techdocs.broadcom.com/content/broadcom/techdocs/us/en/ca-enterprise-software/it-operations-management/ca-unified-infrastructure-management-probes/GA/alphabetical-probe-articles/sybase-sybase-monitoring/sybase-sybase-monitoring-release-notes.html
