How to disable the IP Routing Manager tool?

book

Article ID: 143548

calendar_today

Updated On:

Products

CA eHealth CA Spectrum DX NetOps

Issue/Introduction

Silent install of Spectrum 10.4 is always installing the "IP Routing Manager" tool.

At system startup after the installation, the following error message may be seen in the REXCON.OUT file:

C:\Spectrum\bin\JavaApps\bin>rexconnector.exe -Xms128m -Xmx256m -Dvbroker.agent.enableLocator=false -Dvbroker.orb.admDir=$SPECROOT/bin/VBNS -Dborland.enterprise.licenseDir=%BES_LIC_DIR% -Dborland.enterprise.licenseDefaultDir=%BES_LIC_DIR% -Djava.endorsed.dirs=$SPECROOT/lib/endorsed -DSPECROOT=%SPECROOT% com.aprisma.spectrum.app.rex.connector.REXConnector

JNI error finding main class.
C:\Spectrum\bin\JavaApps\bin>

And this alarm raised:


If IP Routing Manager tool is not used in the environment, is there a way to avoid the installation of this tool when installing Spectrum?
Or can this be disabled after the installation completed?



Environment

Release : 10.4



Resolution

The REX Connector process related to IP Routing Manager tool is managed by "processd".

If the IP Routing Manager tool (Rex Connector) is not used, there is no need for its process to be running.
This can be disabled in the /lib/SDPM/partlist/REXCON.idb file. Edit the file and comment out "AUTOBOOTSTART" and "AUTORESTART", then save the file and restart processd:

- using Bash shell, navigate to /lib/SDPM
- run processd --stop
- wait few minutes
- run processd --start

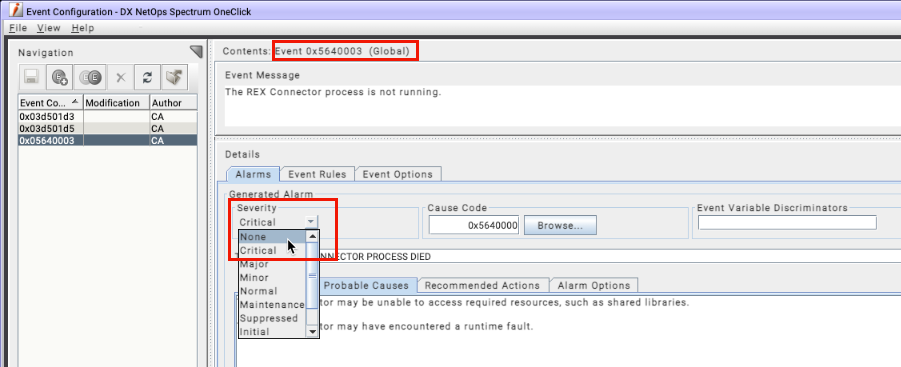

You will also need to disable the alarm from generating on event 0x5640003 in the Event Configuration Editor.  Set the Alarm to None.

Additional Information

https://techdocs.broadcom.com/content/broadcom/techdocs/us/en/ca-enterprise-software/it-operations-management/spectrum/10-4/managing-network/ip-routing-manager/introducing-ip-routing-manager.html
