Connect To ODATA From Microsoft Excel

book

Article ID: 142777

calendar_today

Updated On:

Products

Clarity PPM SaaS

Issue/Introduction

There are several ways to test the OData connection, including MS Excel. This article will cover the steps to connect to ODATA from Microsoft Excel


Environment

Release :  All Supported Releases

Component : CA PPM SAAS INSTALLATION AND UPGRADE

SaaS Environments

Resolution

  1. Open Microsoft Excel and go to Data > New Query > From Other Sources > From OData Feed

  2. Enter the Data Warehouse OData v4 Endpoint URL. This is found in Administration > General Settings > Data Warehouse OData Service
  3. Click OK
  4. Click on Basic link on left hand side
  5. Enter user name created adding tenant name to the user name and enter password
  6. On left-hand navigation menu, select the authentication type. Select 'Basic'
  7. Enter the <clarity_username>|<ODATA_AUTHENTICATOR> and Clarity password
  8. Click Connect.

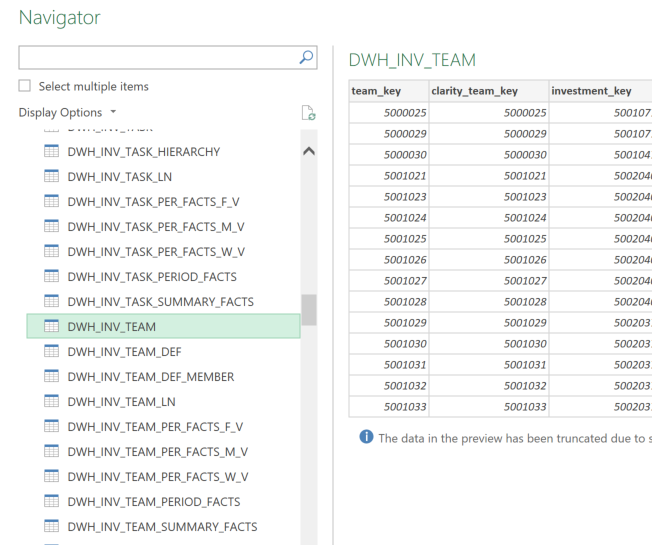

  9. The DWH tables display.

Here is a sample:

Additional Information

See KB Tips on searching for known Clarity Issues using Self Service

See additional requirements / steps to configure OData at: Configure OData Access to the Data Warehouse
