UIM Catalyst Connector not working

book

Article ID: 142563

calendar_today

Updated On:

Products

CA Service Operations Insight (SOI)

Issue/Introduction

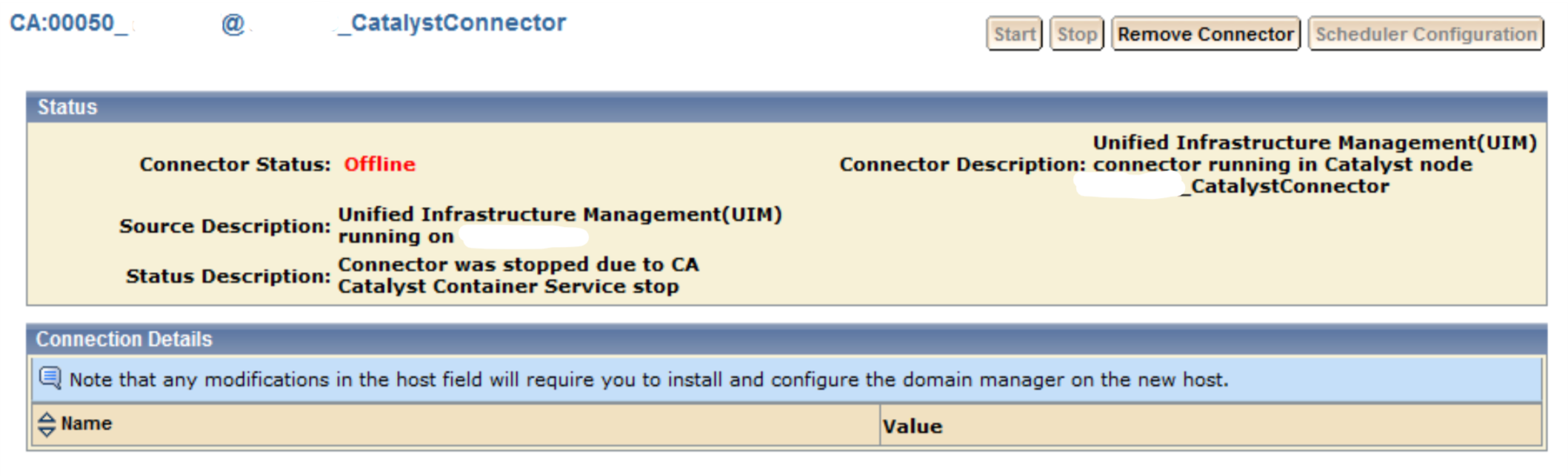

We are having some issues trying to properly initialize UIM connector. Even though the service starts OK, in CA SOI console it shows an error "Connector was stopped due to CA Catalyst Container Service stop"



Cause

Following error found in \data\log\ucf.log on the Container server, which indicates CatalystDataStore files are corrupt

[Blueprint Extender: 2] com.ca.connector.impl.util.AbstractPersistentMap - The H2 DB data file will be created at loc:C:\Program Files (x86)\CA\Catalyst\CatalystConnector\container\CatalystDataStore
FATAL [Blueprint Extender: 2] com.ca.connector.impl.util.AbstractPersistentMap - Unable to setup H2 DB

org.h2.jdbc.JdbcSQLException: Row not found when trying to delete from index

Environment

Service Operations Insight (SOI) Manager 4.x

Catalyst Container 3.4.x

UIM Connector 9.x

Resolution

1) Stop "CA Catalyst Container Services"

2) Move all files inside "\Catalyst\CatalystConnector\container\CatalystDataStore" to a TEMP folder

3) Start "CA Catalyst Container Services", this will recreate CatalystDataStore files
