Resource Time Summary and Detail report period missing and same Note displayed for each period

book

Article ID: 141927

calendar_today

Updated On:

Products

Clarity PPM On Premise Clarity PPM SaaS

Issue/Introduction

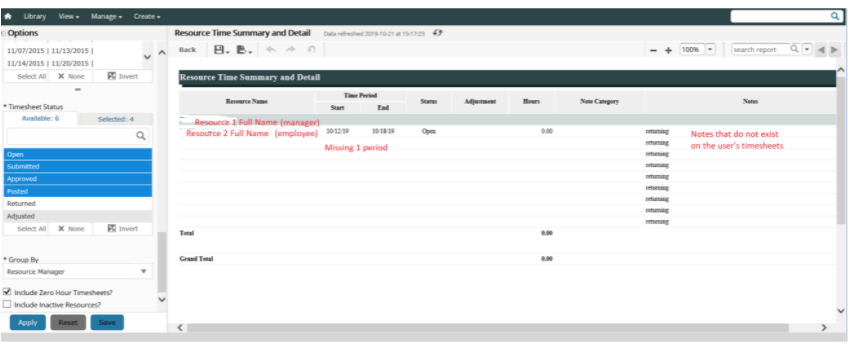

The report is poorly formatted (periods missing) and note is duplicated for each period.

Steps to Reproduce:

  1. Open the Resource Time Summary and Detail report for two periods

  2. Filter on Resource OBS

 In the results, you do not see the second period. Some also display notes, when the timesheets do not have any timesheet notes.

Cause

Running queries on the database you find the notes by the text without a prrecordid (NULL)

The issue is coming from the fact that in the report the query is built like this

0 timesheetid

Additionally, there is an orphan note in the PRNOTE table with a NULL PRRECORDID that was brought into the Data Warehouse as 0 for PRRECORDID in dwh_tme_sheet_note.timesheet_key

Environment

Release : All supported Clarity releases

Resolution

Workaround 1:

Follow the solution below to delete the note from the database and then run the Load Data Warehouse job again:
{Replace prid 5xxxxxx with the actual note ID):

delete from prnote
where
prtablename = 'PRTimeSheet'
and prid = 5xxxxxx

delete from odf_ca_timesheetnote
where id = 5xxxxxx

Both should delete 1 record, then you commit.

Workaround 2:

If you know which timesheet the note should belong to, reset the note PRRECORDID to point to the most likely timesheet for the user. Once you update it should show in UI.

Once you apply either of the workarounds:

  1. Run the Load Data Warehouse - Full Load
  2. Check out the report again, it should display properly

Additional Information

See also: Jaspersoft / reports known issues with Clarity
