Tips for converting Endevor Internal Approver to External Approver Groups

book

Article ID: 141463

calendar_today

Updated On:

Products

CA Endevor Software Change Manager (SCM)

Issue/Introduction

Are there any tips to help convert Endevor internal Approver to groups to External Approver groups?

Environment

Release : 18.0

Component : CA Endevor Software Change Manager

Resolution

Here are some tips that can help to convert Internal Endevor Approver groups to Enxternal Approver Groups.

1. 1.  Run a CSV report to show all approver groups:

//[email protected]  EXEC PGM=NDVRC1,REGION=4M,
//         PARM='CONCALL,DDN:CONLIB,BC1PCSV0'
//STEPLIB  DD DISP=SHR,DSN=your.endevor.CSIQAUTU
//         DD DISP=SHR,DSN=your.endevor.CSIQAUTH
//CONLIB   DD DISP=SHR,DSN=your.endevor.CSIQLOAD
//APPLIST  DD DSN=iprfx.iqual.approver,
//         DISP=(NEW,CATLG,DELETE),
//         SPACE=(CYL,(5,50),RLSE),
//         DCB=(DSORG=PS,RECFM=VB,LRECL=4092,BLKSIZE=4096)
//C1MSGS1  DD SYSOUT=*
//BSTERR   DD SYSOUT=*
//BSTIPT01 DD *
LIST APPROVER GROUP * TO FILE APPLIST

2.  After executing the above job, create an EXCEL spreadsheet from the sequential file.  For more information on how to create a Spreadsheet use this link:

https://ca-broadcom.wolkenservicedesk.com/external/article?articleId=17650

This spreadsheet will provide the information needed to create the external approver groups. It will provide the Environment and stage, the quorum size, the approver user-ids and if they are required. The output will look similar to this:

ENV NAME STG NAME STG ID STG # APPR GRP QUORUM TITLE APPR USRID1 APPR REQ1 APPR USRID2 APPR REQ2
DVLP UNT 1 1 ADMIN 1 ENDEVOR TEST TEST TEST SYSTEM U8FG N BDDAMP N
DVLP UNT 1 1 ADMIND 1 STOP ALL PROCESSING UK0R N
DVLP UNT 1 1 BLK_EMER_PKGS 0 EMERGENCY PKG USED BY RETROFIT ONLY UK0R N BDDAMP N
DVLP UNT 1 1 CORP_SOC 1 SECURITY OPERATION CENTER



3. 3.  Once it is determined which groups are to be converted if not all, then,  provide this information to your Security Admin.  The Security Admin can then create the external groups based on the instructions provided in the Package Guide.  The information can be found here:

https://techdocs.broadcom.com/content/broadcom/techdocs/us/en/ca-mainframe-software/devops/ca-endevor-software-change-manager/18-1/administrating/package-administration/approver-groups.html



4. 4.  After the Security Admin creates the external approver groups, then the Endevor Administrator can create/update the approver groups in Endevor.  The Approver Group names that are defined in Endevor must be the same as the Approver Groups you have defined in the external Security package. If the Approver Group names defined to the security package are the same as the ones defined in Endevor, then, update the Approver Group definition in Endevor as follows:

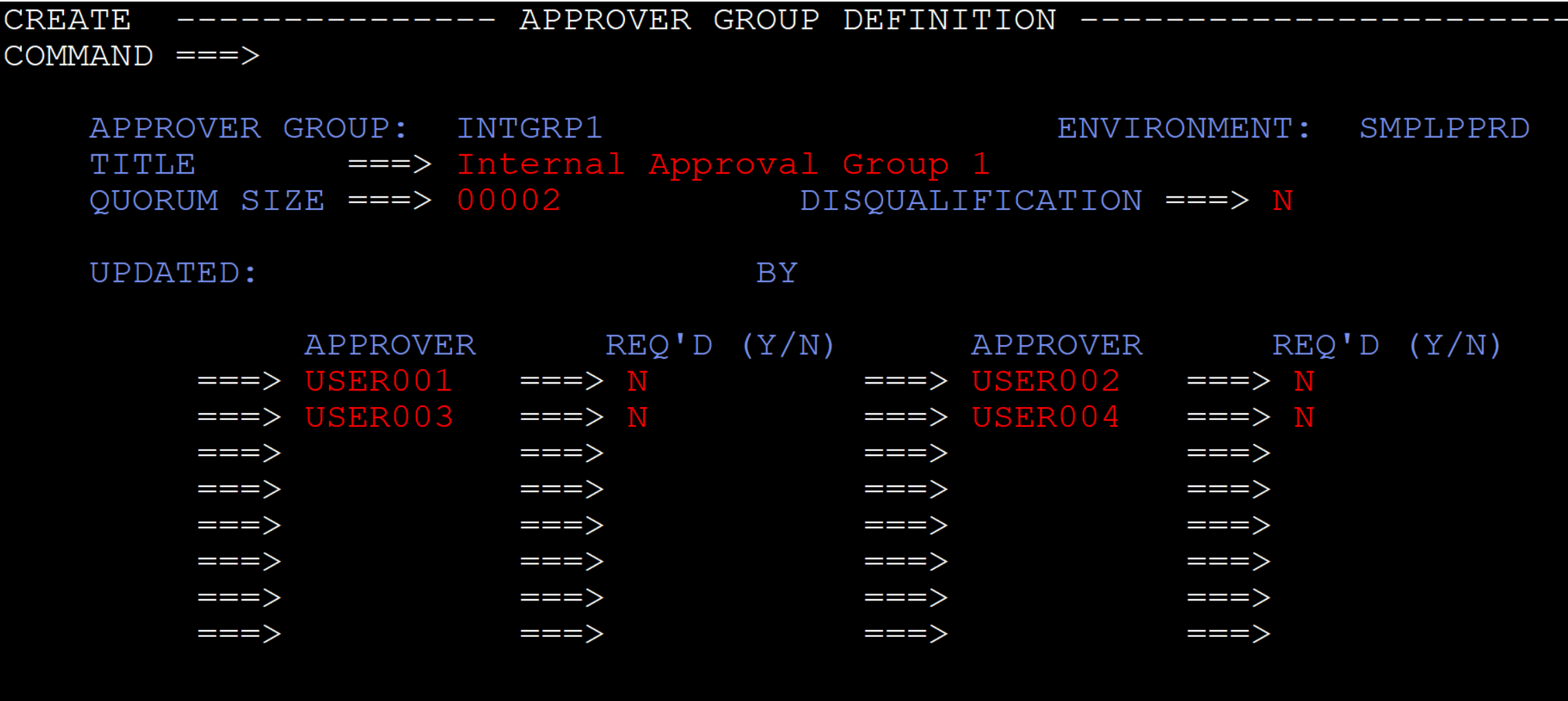

Existing Internal Approver Group

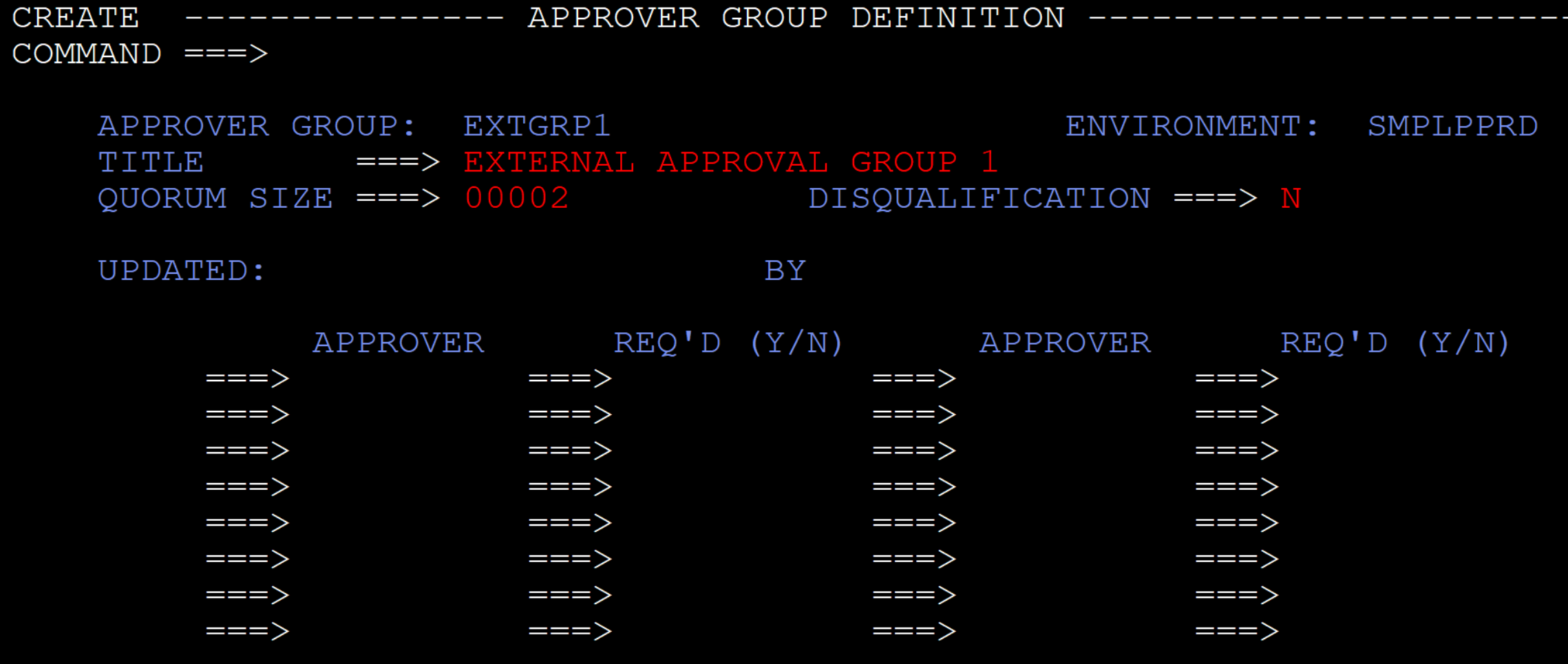

Update the existing Internal Approver group – remove all the USERIDs of the approvers. For an externally defined Approver group the  Quorum size the acceptable values are 0 – 32760.



5.  Testing your new External Approver Group - Once the external groups already set-up in ACF2/RACF/TSS, it is recommended that you test to make sure that the new external approver groups are working.  The below steps are just a guideline:

a.       Run an archive and delete any packages clean up

b.      Run CONRPT72 (Package Detail Report) to determine which packages are in approval and approved status

c.       Reset those package

d.      Remove and/or update the internal approver groups and define the new external approver groups if needed.

e.       Create a test package – cast the test package – approve the test package for each inventory area affected.

f.        If the above step is successful, cast and approve the packages that were reset from CONRPT72.



If you need further assistance or have any questions, please contact your local Broadcom Endevor Support team.
