How to see all probe packages deployed to a robot

book

Article ID: 141322

calendar_today

Updated On:

Products

DX Unified Infrastructure Management (Nimsoft / UIM) CA Unified Infrastructure Management On-Premise (Nimsoft / UIM) Unified Infrastructure Management for Mainframe CA Unified Infrastructure Management SaaS (Nimsoft / UIM) NIMSOFT PROBES

Issue/Introduction

There are a number of packages that are needed for functionality, and yet once deployed, they do not show up in either the IM or Admin Console. This provides a method to see all of the packages deployed to a robot and their details such as version and build.

Resolution

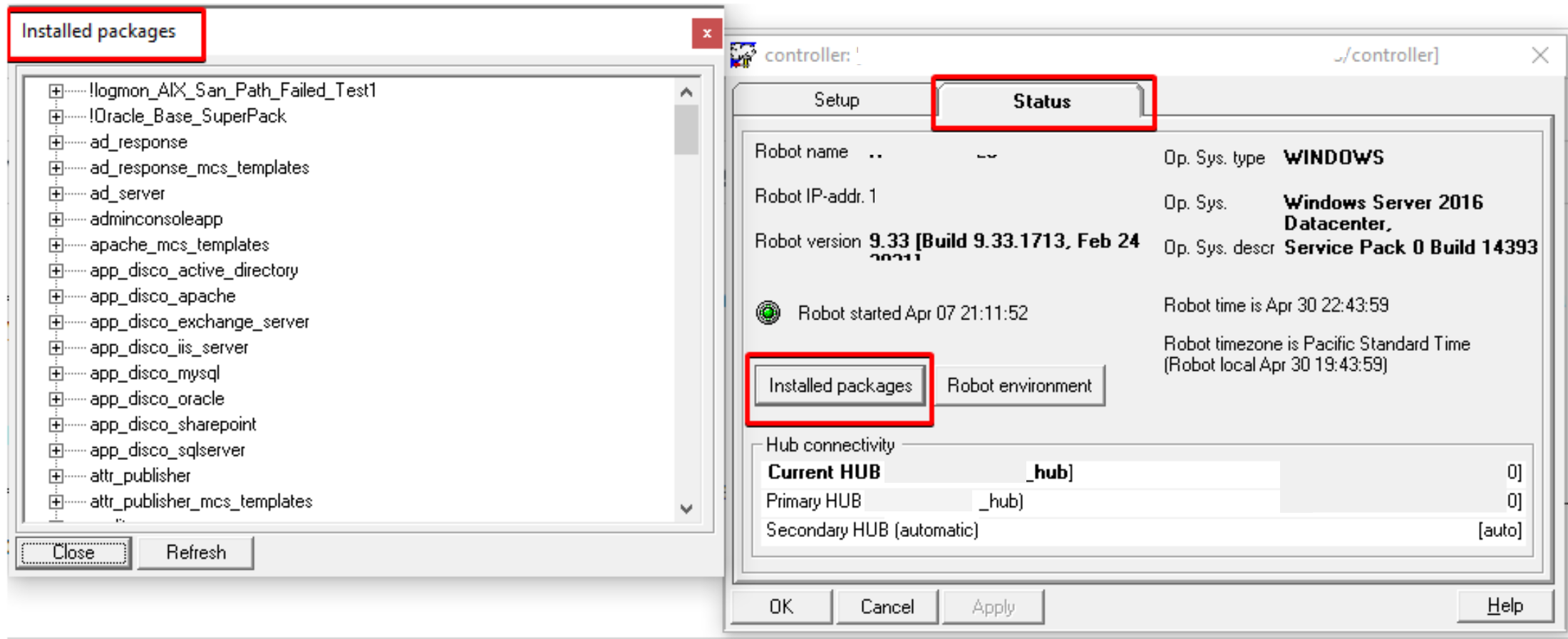

Via IM console

Select the robot -> select controller -> double click or right click Configure to open the GUI interface -> choose Status -> Installed packages > there will be a popup with the list of installed packages and click the + to the left of a package to expand and display all of the details.

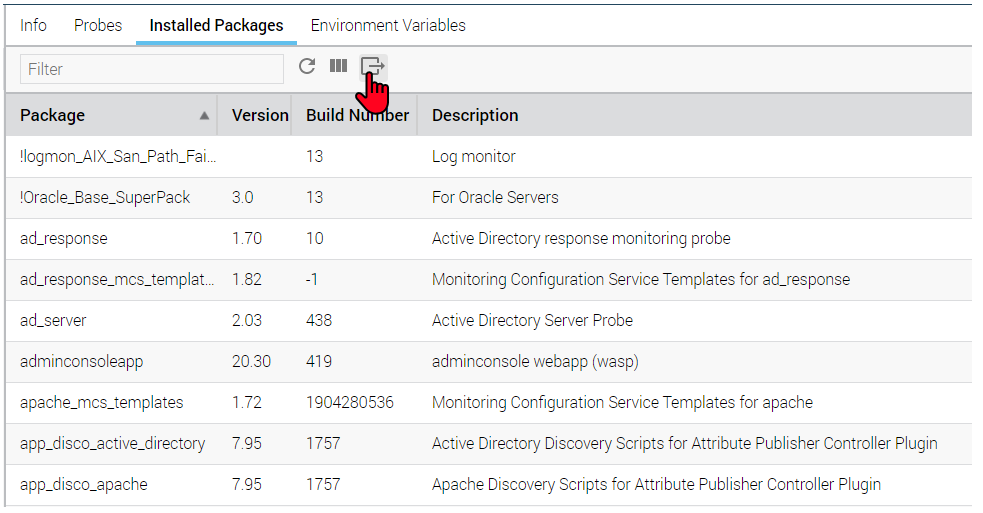

Via Admin Console

Select the robot -> Installed Packages -> click the export icon, the 'square with the arrow' -> it will be saved to disk in the naming format of InstalledPackage_xxxxx.csv containing:

"Package","Version","Build Number","Description"





Via PU command.

pu -u <UIM administrator account name> -p <UIM administrator account password> <UIM robot address>controller inst_list > inst.txt

Example:
pu -u administrator -p Hello /9.2-DOM/P_hub/oldcabi/controller inst_list_summary > oldcabi-inst.txt

Or use inst_list if the complete details are desired.



Additional Information

The list of packages displayed is maintained local at the robot in:
$\Nimsoft\robot\pkg\inst\installed.pkg

PU.EXE documentation page:
Run Probe Commands from a Command Prompt
https://techdocs.broadcom.com/us/en/ca-enterprise-software/it-operations-management/unified-infrastructure-management/20-3/administering/run-probe-commands-from-a-command-prompt.html

Query to provide the list of robot UIM addresses.
SELECT distinct r.address
from cm_device cd
join cm_nimbus_robot r on r.dev_id=cd.dev_id
join cm_computer_system cs on cs.cs_id=cd.cs_id
