Unable to load NFA console correctly after new install of NFA 10.x

book

Article ID: 140224

calendar_today

Updated On:

Products

CA Network Flow Analysis (NetQos / NFA)

Issue/Introduction

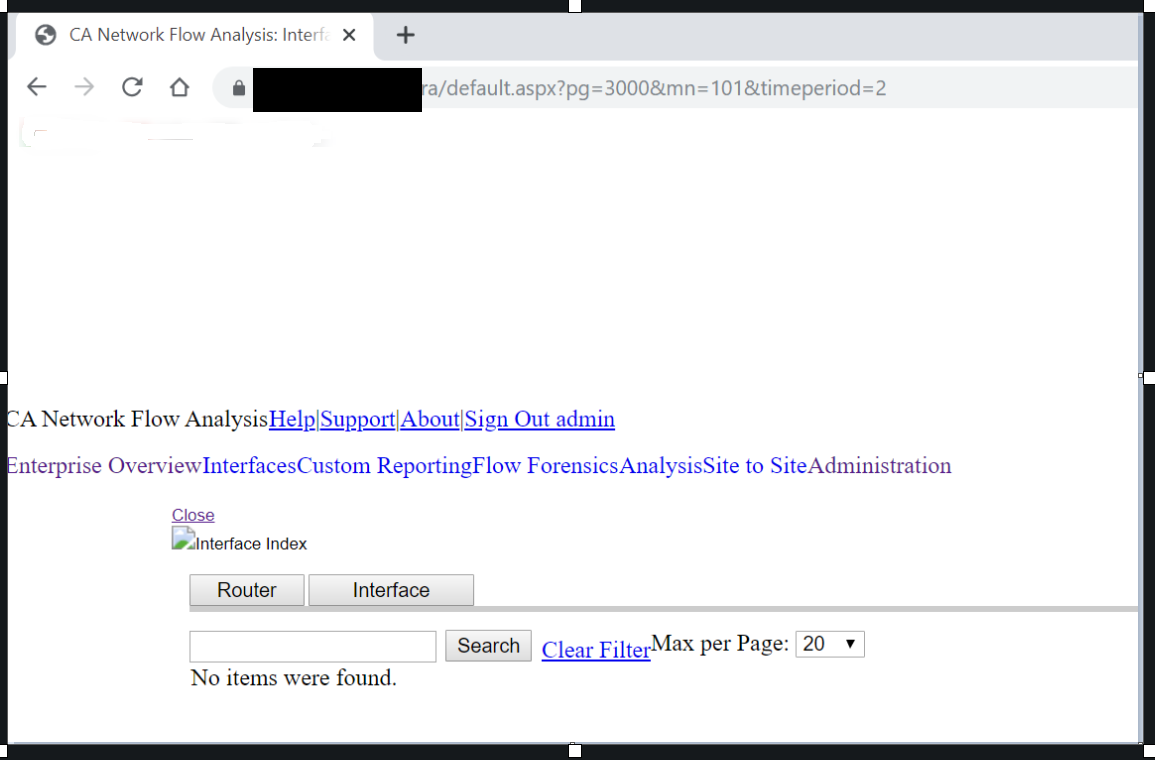

New installation of NFA 10.0. After installation not able to load the NFA console as expected. The gui menus not populating correctly in browser after login



Environment

Release : 10.0

Component : NQRPTA - REPORTERANALYZER

Windows 2016

Resolution

Some prerequisites related to IIS / ASP were missing as documented in the install docs.



Install IIS, ASP, COM+, and SNMP



install iis



NFA windows prerequisites



The NFA-check.bat file gave the below recommendations



D:\CA\NFA_Check_1.0>NFA-fix.bat



Enabling features:



ServerMediaFoundation  IIS-HttpRedirect  IIS-LoggingLibraries  IIS-RequestMonitor

IIS-BasicAuthentication  IIS-WindowsAuthentication  IIS-DigestAuthentication

 IIS-ClientCertificateMappingAuthentication  IIS-IISCertificateMappingAuthentication

 IIS-URLAuthorization  IIS-IPSecurity  IIS-HttpCompressionDynamic

IIS-ManagementScriptingTools  IIS-ASPNET



Error: 0x800f081f



The source files could not be found.



Use the "Source" option to specify the location of the files that are required to restore the feature. For more information on specifying a source location, see http://go.microsoft.com/fwlink/?LinkId=243077.



----------- Done. ------------



To complete this process, please



- REBOOT



- RE-RUN the CHECK tool



 Since getting error to enable IIS-ASPNET using NFA-fix.bat can use information below



How to register ASP.NET on Microsoft Windows Server 2016



To register ASP.NET on Microsoft Windows Server 2016, launch an elevated command prompt and run the following command:



dism /online /enable-feature /featurename:IIS-ASPNET45



After this process was done the NFA console was launching with all menus populated correctly

Note: If the above does not work can also try with removing IIS and .Net

And then readd these features according to NFA pre-requisite documents






Additional Information

https://techdocs.broadcom.com/content/broadcom/techdocs/us/en/ca-enterprise-software/it-operations-management/network-flow-analysis/10-0-0/installing/system-recommendations-and-requirements/windows-servers.html




https://techdocs.broadcom.com/content/dam/broadcom/techdocs/us/en/assets/docops/nfa1000/nfa_check_1.0.zip
