USM or Operator Console (OC) alarm count is not updating

Products

• DX Unified Infrastructure Management (Nimsoft / UIM)

Issue/Introduction

We have noticed that the time and count of alarms in USM/OC are not getting updated as they should. As mentioned in the KB34697 I have set the supp_divisor to a certain value, but USM/OC isn't respecting it.

Environment

Release : UIM 9.2.0

NAS 9.2

Component : UIM - UMP_USM

Cause

- New key enabled by default in NAS 9.2

Resolution

For improving USM performance NAS 9.2 introduces a new key.

The new is called "nis_update_skip_factor = 100"

(by default it comes with value 100)

This configuration forces the NAS_ALARMS in the UIM DB (the alarms that show in USM/OC) to update every 100 occurrences, even if the local alarms (database.db - the alarms that show in IM) are increasing the count at higher rate count as determined by the Example: supp_divisor = 1" key.  (at every occurreance of the same alarm).

The "nis_update_skip_factor equals to 100 makes identical suppressed alarms to update in USM every 100 occurrences.

To disable this new configuration key please set it to "nis_update_skip_factor = 0"

When disabling the function, USM alarms will update the count following the supp_divisor key, as described in KB34697

Below a summary of what each key corresponds to in the NAS GUI and what it does:

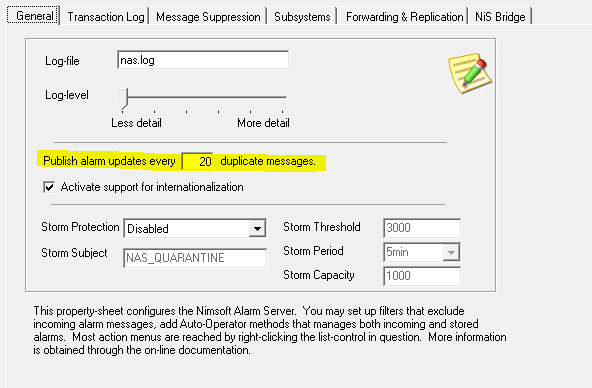

NAS GENERAL Tab:

Publish alarm updates every " " duplicate messages

KEY: [supp_divisor = 20]

This value determines how often the 'suppcount' is updated in the NAS_ALARMS table in the database.db.
The first alarm has a value of '0'. This reflects in the IM alarm subconsole "count" value for each alarm. The first alarm will show in IM alarm details as Count = "1"
If supp_divisor =1 , at EVERY identical alarm, the count increases.
If supp_divisor =20 the 'suppcount' in the database.db and the "count" in IM will increase only once you receive the 21st suppressed alarm

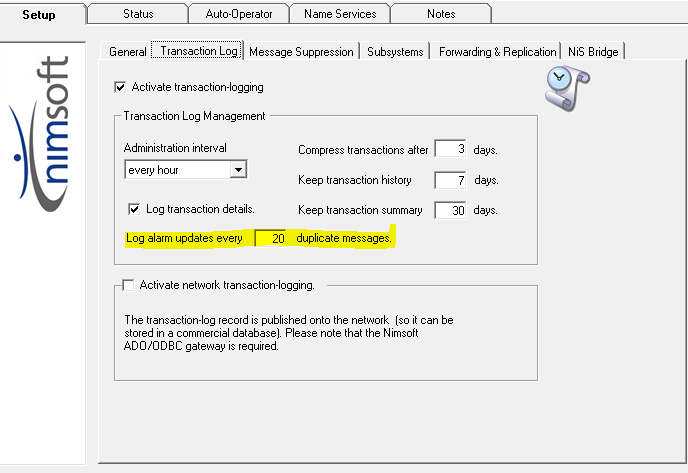

NAS TRANSACTION-LOG tab:

Log alarm updates every " " duplicate messages

KEY: transactionlog_divisor = 20

This value determines how often the 'suppcount' is updated in the NAS_TRANSACTION_SUMMARY table in the transactionlog.db.

If transactionlog_divisor=1 , at EVERY alarm, the count increases.
If transactionlog_divisor =20 the 'suppcount' in the database.db will increase only once you receive the 21st suppressed alarm


NEW KEY IN NAS 9.2

KEY: nis_update_skip_factor
This key will do the same as supp_divisor does but in the UIM DB NAS_ALARMS table.

If nis_update_skip_factor=1 , at EVERY alarm, the count increases in UIM DB NAS_ALARMS table and so, count in USM/OC.
If nis_update_skip_factor=0 this new key is DISABLED meaning that behavior will be the same as before NAS 9.20
If nis_update_skip_factor=20 the 'suppcount' in the NAS_ALARMS in the UIM DB will increase only once you receive the 21st suppressed alarm
