How to add a devices firmware version as a column in the list view in OneClick

book

Article ID: 138793

calendar_today

Updated On:

Products

CA Spectrum

Issue/Introduction

How to add a device's firmware version field in the list view of the OneClick console.

Environment

Release : 10.4.x (NetOps 20.2.x)

Component : Spectrum Core / OneClick

Cause

By default firmware version is not a selectable column in the list view

Resolution


1) Copy the table-model-config.xml file to the custom folder area

        Copy: $SPECROOT/tomcat/webapps/spectrum/WEB-INF/common/config/table-model-config.xml

        To:  $SPECROOT/custom/common/config/

Note: If the table-model-config.xml file already exists under the custom folder area, skip the copy and modify the existing file

2) The firmware attribute already has a defined attribute xml file as well as a column file so we only need to add an entry
       inside the table-model-config.xml for it to be added as an option

Add the following column definition inside the </column-list> close tag

    <column idref="column-firmwareversion-config">
       <hidden-by-default>true</hidden-by-default>
    </column>

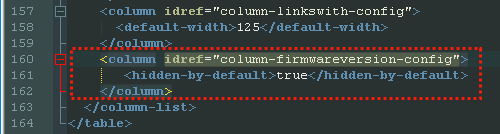

example


2) Restart the OneClick Console

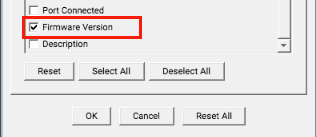

3) In the 'List' Tab or Locator Search Results right-click the Column header and check the Firmware Version box







Additional Information



If there are any syntax errors you may receive a popup error when launching the console. If so please review the changes to the xml file
  for any errors. If the column does not appear and no errors are seen please check the OneClick tomcat log for any errors.
