How can I hide the modeltype name on Containers

book

Article ID: 13810

calendar_today

Updated On:

Products

Spectrum Network Observability

Issue/Introduction

OneClick provides a flexible platform for administrators to modify aspects of the application to meet specific requirements.

How the OneClick Console can be customized to hide the Modeltype_Name (0x10000) attribute value of Containers such as LAN or Network in Topology view.

Environment

All supported DX NetOps Spectrum releases

Resolution

On the OneClick web server machine, follow these steps:

  1. Copy the $SPECROOT/tomcat/webapps/spectrum/WEB-INF/topo/config/oneclick-container-iconbase-config.xml file to the $SPECROOT/custom/topo/config/ directory.

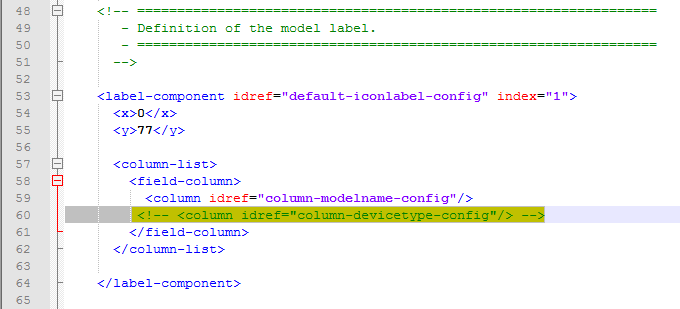

  2. Edit the $SPECROOT/custom/topo/config/oneclick-container-iconbase-config.xml file and comment out the following line:
  3. Save the file.
  4. Launch the OneClick Console.
  5. The Modeltype_Name is no longer visible in Topology view for the containers.
