Spectrum "FAILURE TO BIND TO A TRAP PORT" alarm on VNM model
Article ID: 138017
Updated On:
Products
Issue/Introduction
Spectrum "FAILURE TO BIND TO A TRAP PORT" alarm on VNM model - Cause Code: 0x10e05
Environment
Release : Any Spectrum version
Component : Spectrum Core / SpectroSERVER
Cause
There is another process that is bound to the default trap port 162 preventing Spectrum from binding to the trap port for trap processing.
Resolution
On Linux, check to see if the snmptrapd process is running. If so, stop this process and prevent it from restarting and then restart the SpectroSERVER process.
- netstat can be used to see what process has port 162 bound (requires root to see the process info)
# netstat -anp | grep 162
udp 0 0 0.0.0.0:162 0.0.0.0:* 1336/snmptrapd
systemctl stop snmptrapd
systemctl disable snmptrapd
Restart the SpectroSERVER as the spectrum user.
On Windows, check to see if the SNMP Trap service is running. If so, stop the service and prevent it from restarting and then restart the SpectroSERVER process.
- Start a bash shell by running "bash -login"
- Run the following command to display the process id and name of the process that is bound to port 162:
netstat -ano | grep 162
udp6 0 0 :::162 :::* 1234/snmptrap.exe
Use the Windows Services Control Panel (services.msc) to stop 'SNMP Trap' and set it to manual or disabled
- Restart the SpectroSERVER after stopping the 'SNMP Trap' service or other applications using the port.

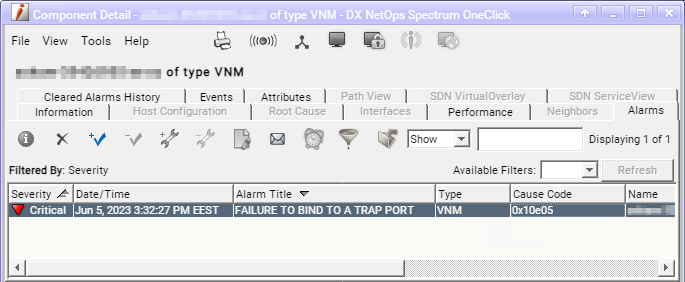

The SpectroSERVER application is listening on port 162:
Additional Information
The most common root cause is that the Secure Domain Connector was installed on the SpectroSERVER machine.
The following KB article provides the steps to uninstall the Secure Domain Connnector.
https://knowledge.broadcom.com/external/article?articleId=196089
