Does vmware probe support vmware VSAN storage monitoring?

Products

• DX Unified Infrastructure Management (Nimsoft / UIM)

Issue/Introduction

Does vmware probe support VMware vSAN storage monitoring?

Environment

Release: UIM Server any version
Component: vmware probe 6.53 and later

Cause

VSAN monitoring with the vmware probe is not well document in the VMware Wiki documents

Resolution

Yes, the vmware probe collects vsan metrics and displays them under the datastore folder in Admin Console and Infrastructure Manager VMware Configure GUI.

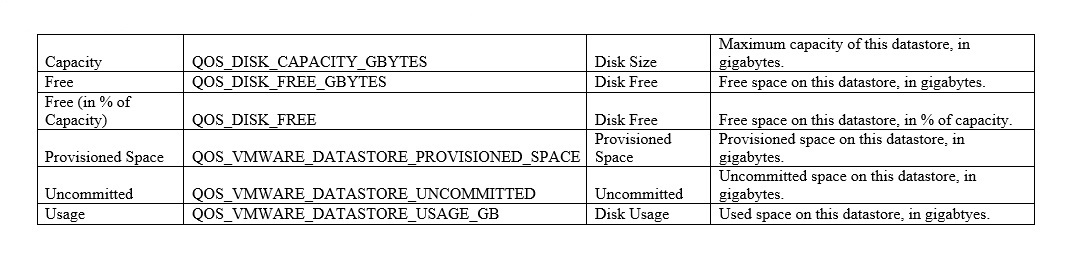

• QOS/monitors for vsan

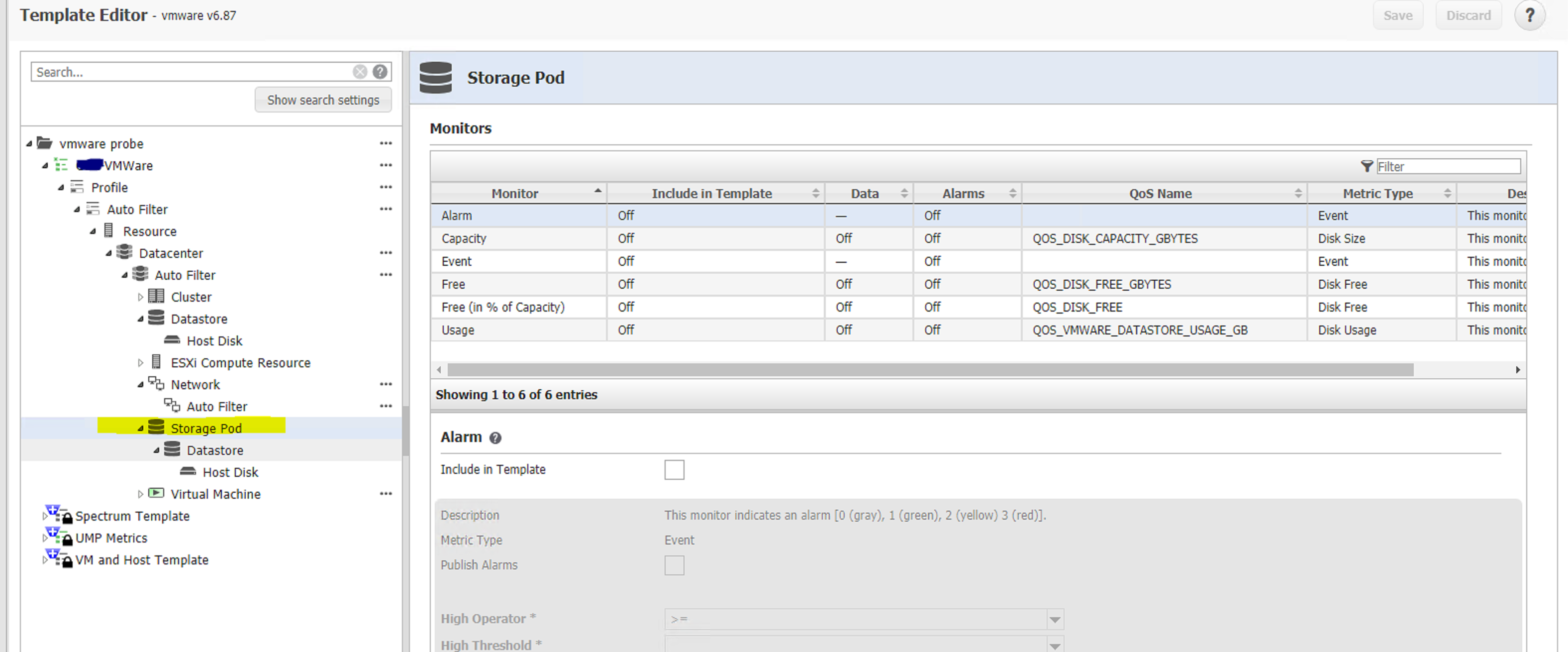

• Location of these monitors in a vmware probe template created from Admin Console
