What do the icon colors and icon variations represent for the probe packages in the IM local archive?

book

Article ID: 130568

calendar_today

Updated On:

Products

DX Infrastructure Management NIMSOFT PROBES

Issue/Introduction

Guide for the Infrastructure Manager along with information on what the icons mean within the local archive.

What do the icon colors and icon variations represent for the probe packages in the IM local archive?

Environment

- UIM (any version)

Resolution


<Please see attached file for image>

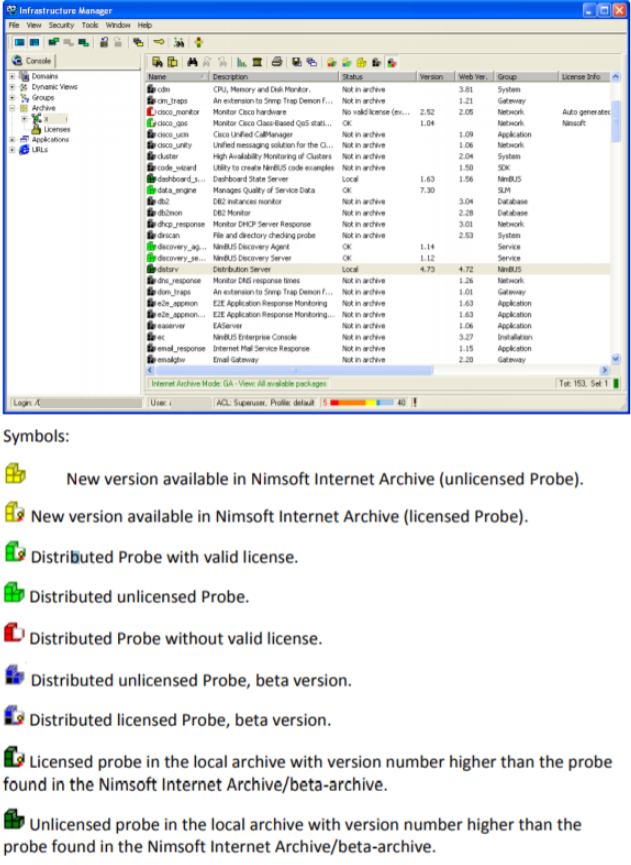

Infrastructure Manager icon guide, colors and variations

Additional Information

Infrastructure Manager Reference and User GuideĀ v4.04

https://docops.ca.com/bookshelves/files/476982161/476986372/1/1528955861047/InfrastructureManager-4.04.pdf

Note that this is an older version of the IM guide but it contains a lot of helpful information and screen shots that describe the IM interface and its displays, e.g., icons, colors, images, etc.

For example, see page 104.

Attachments

1558687830242000130568_sktwi1f5rjvs16fds.png get_app
