Discovery failing and permission denied messages in discovery_agent logs

Products

• DX Unified Infrastructure Management (Nimsoft / UIM)

Issue/Introduction

Hub tunnel communications between primary and secondary were being reset. This was preventing discovery_server and _agent communications from completing. This was showing up in the hub and discovery logs with permission and access denied messages for the record_agent_status command.

The following is found in the secondary hubs' discovery_agent log showing the permission denied.

[StatusUpdaterOnConfig, discovery_agent] Encountered error updating Discovery Agent status to Discovery Server (/Domain/PrimaryHub/Robot/discovery_server): (6) permission denied, Received status (6) on response (for sendRcv) for cmd = 'record_agent_status'.
[StatusUpdaterOnConfig, discovery_agent] Error trying to send status: PDS [ht={probe_version=Element [buf=null, pds=null, tpds=null, type=7, value=8.51], state=Element [buf=null, pds=null, tpds=null, type=7, value=NO_SCHEDULE], agent_address=Element [buf=null, pds=null, tpds=null, type=7, value=/Domain/SecondaryHub/Robot/discovery_agent]}]
[StatusUpdaterOnConfig, discovery_agent] (6) permission denied, Received status (6) on response (for sendRcv) for cmd = 'record_agent_status'

The following is found in the primary hub log:

hub: taccess_lock - taccess_check
hub: taccess_check: - [1] ###.###.###.###/53479 /<Domain>/<PrimaryHub>/<Robot>/discovery_server record_agent_status discovery_agent
hub: taccess_unlock - taccess_check

Environment

• UIM 8.51
• Hub 7.93
• discovery_server 8.51
• discovery_agent 8.51

Cause

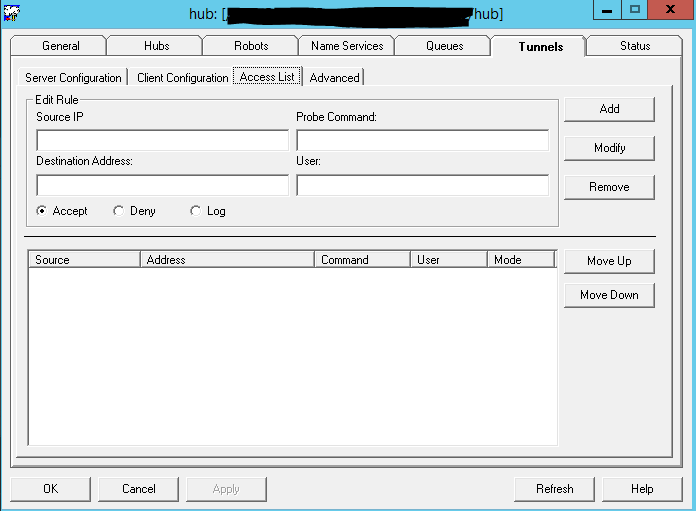

The taccess messages in the primary hub are referencing the Access List found in the hub tunnel configuration.  When these access lists are configured, tunnel communications can be blocked.

Resolution

Removing any entries in the hubs Tunnel Access List will allow communications over the tunnel to be unrestricted.
