Client Automation - SXP Packager - CMP Editor problem with SxpWinSysDir64, SxpCommonProfileAppsDir, SxpWinProgDir64 variables

Products

• CA Client Automation - IT Client Manager
• CA Client Automation
• CA Client Automation - Software Delivery

Issue/Introduction

When doing an export in CMP Editor tool in SXP Packager, variables SxpWinSysDir64, SxpCommonProfileAppsDir and SxpWinProgDir64 are not correctly resolved.

Variable SxpWinSysDir64 is resolved as c:\windows\system32 instead c:\windows\SysWOW64
Variable SxpWinProgDir64 is resolved as C:\Program Files (x86) instead C:\Program Files
Variable SxpCommonProfileAppsDir is not resolved and appears as $(SxpCommonProfileAppsDir) instead C:\ProgramData

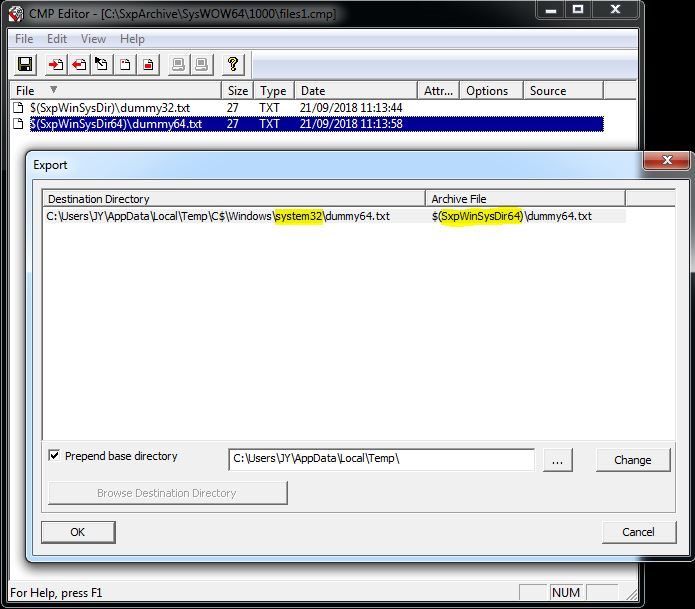

Example 1 :

Export of file $(SxpWinSysDir64)\dummy64.txt is made under

<base directory>\C$\Windows\system32\dummy64.txt

It should be

<base directory>\C$\Windows\SysWOW64\dummy64.txt



Example 2 :

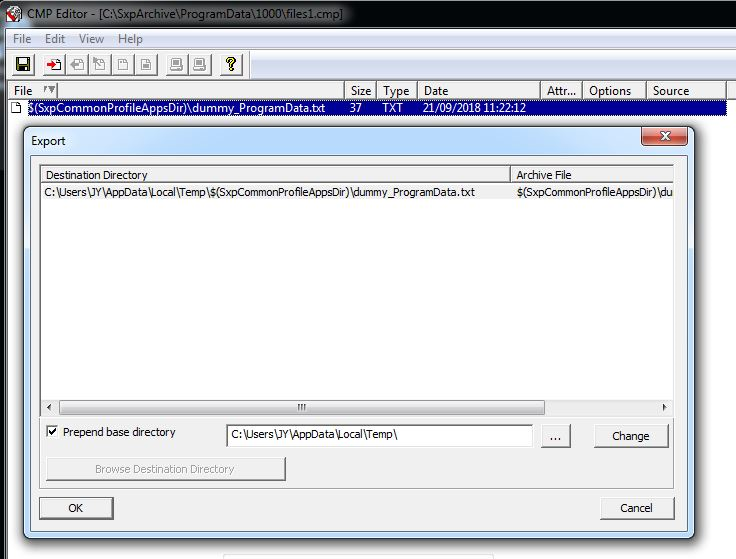

In this second example below, export of file $(SxpCommonProfileAppsDir)\dummy_ProgramData.txt is made under

<base directory>\$(SxpCommonProfileAppsDir)\dummy_ProgramData.txt

It should be

<base directory>\C$\ProgramData\dummy_ProgramData.txt


Environment

Client Automation 14.0 SP2

Resolution

Open a CA Support Case asking for fix T437293 for Client Automation 14.0 SP2.
