"Invalid proxy port" error running SPM HTTP tests from System Edge Test Host model

book

Article ID: 110113

calendar_today

Updated On:

Products

CA Spectrum

Issue/Introduction

"Invalid proxy port" error running SPM HTTP tests from System Edge Test Host model

  • Create a new svcrsp.cf file with only one or two of the problem tests so its easier to read the debug log.
  • Put the SRM AIM into debug=7 via the svcrsp.cf file and restart the agent (C:\Users\Public\CA\SystemEDGE\port1691\plugins\svcrsp\svcrsp.cf).
  • Rerunning tests shows them failing due to invalid proxy configuration:
ERRSRC:http ERRCODE:50 INDEX:14229 NAME: TESTDESC:Marko ERROR: jcollector.SATestException: Invalid proxy port.

Environment

Release: Any
Component: SPCAPP

Cause

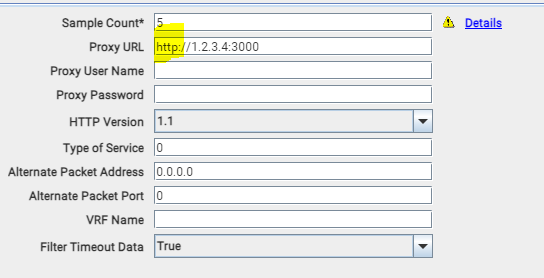

User had placed http:// in front of the proxy server destination within Spectrum:

Resolution

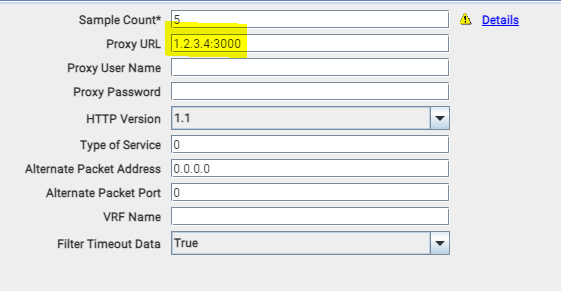

Removing http:// from the proxy configuration within the tests resolves the issue:
