Release & Iteration Burndown iteration headers overlap

book

Article ID: 110107

calendar_today

Updated On:

Products

CA OPS/MVS Event Management & Automation CA Agile Central On Premise (Rally) CA Agile Central SaaS (Rally)

Issue/Introduction



The Release & Iteration Burndown app is showing overlapping iteration names in the header, how can this be fixed.

Environment

Release:
Component: ACSAAS

Resolution

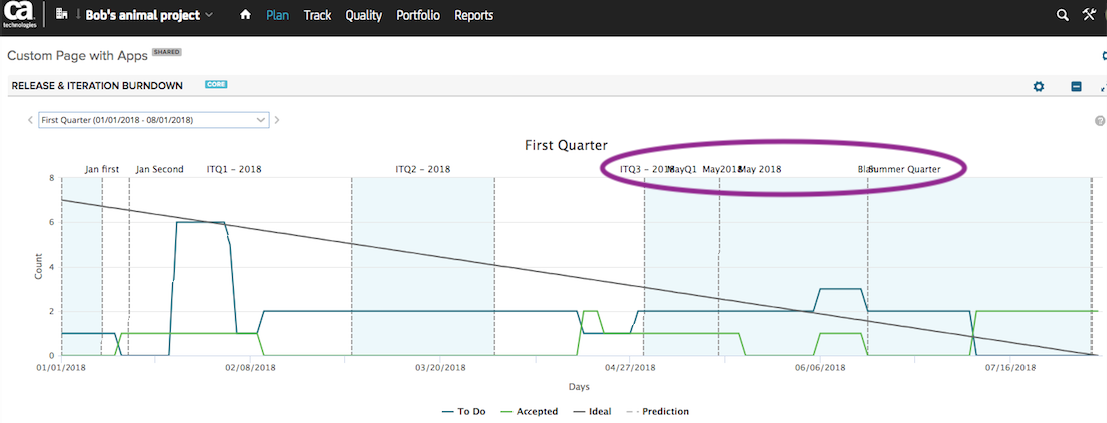

There can be several reasons for the names to be overlapped as shown here.

<Please see attached file for image>

User-added image
- the iteration dates overlap on either the parent and/or child projects.
 Removing the scoping to child projects may correct the issue if the parent project has no overlapping iteration start and end dates and a child project does.

<Please see attached file for image>

User-added image
- If no overlapping iteration dates are found it may be caused by either having too many iterations in the release to fully display them correctly in the browser;
- or the iteration names are very long;
- or the iterations are very short in days and thus the names overlap;
- or the browser font size/resolution is causing the chart to be rendered in too small a window.

Shrinking the font or expanding the size of the browser window can also fix this display problem.

<Please see attached file for image>

User-added image
