Issue/Introduction

Application clusters which have number of cluster disks attached to it. Need to get report on disk usage of disks on cluster.

Tried with UMP Performance report tool as well as tried to get trend report on the cluster disk, but not able to get report on them.Can get report on local drives on the machine in cluster just not the cluster disk.

Is there is any way to get report on cluster disks?

Environment

UIM 8.5x

Resolution

In the cdm probe, the cluster IP is used as Alarm and QoS source instead of the cluster node .
If we check using the cluster IP in PRD (performance report) you will see the cluster disks data.


Set up Cluster Monitoring in cdm
The cdm probe receives information about the cluster disk resources from the cluster probe. Monitoring profiles are created for the resources that are based on the fixed_default settings in the cdm probe. The profile is automatically registered with the cluster probe to ensure continuous monitoring on cluster group failover.

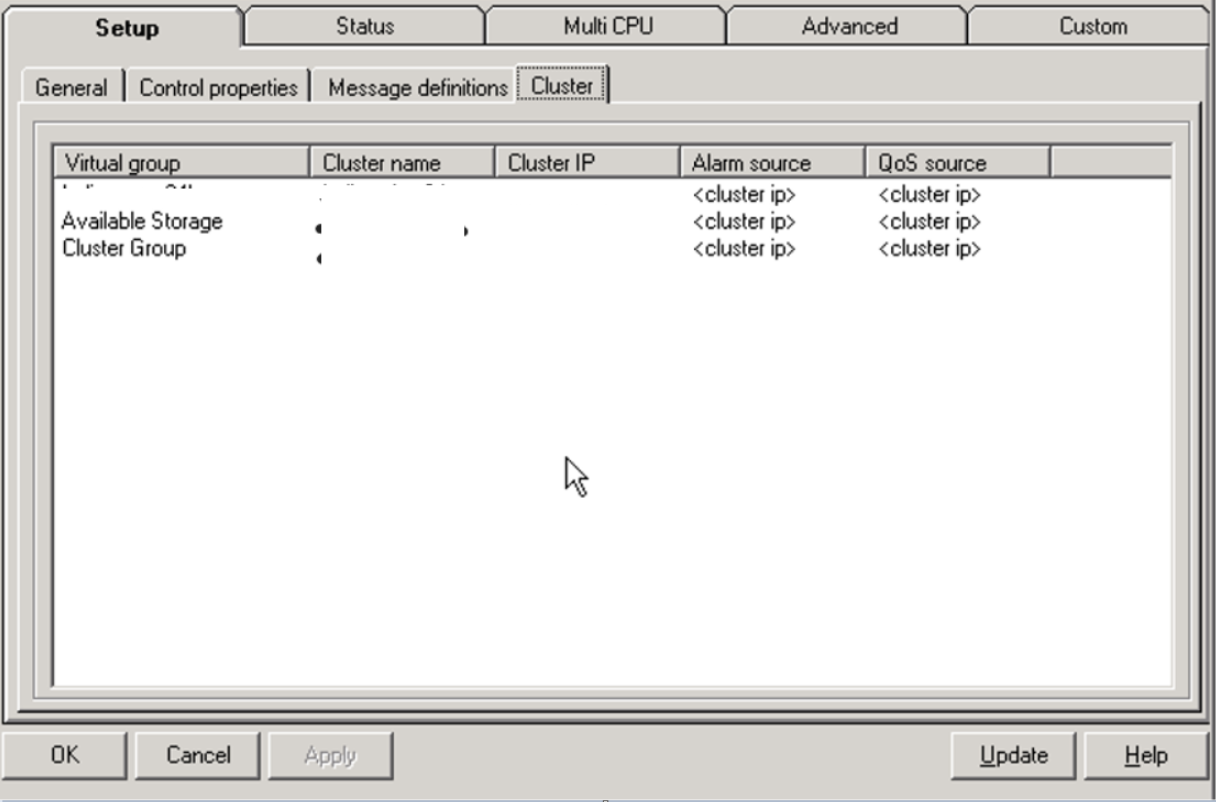

In the cdm probe, the cluster IP is used as Alarm and QoS source instead of the cluster node.

You can change the source to cluster name or group name from the Infrastructure Manager (IM).







Additional Information

Cluster Monitoring

https://community.broadcom.com/participate/ideation-home/viewidea?IdeationKey=eedea84d-eed6-4170-9932-dfad2ce528d3
