Date time conversion in APIM

Products

• CA API Gateway

Issue/Introduction

This article illustration how to convert the date time to different format.

For example, convert a date with format "13/Jul/2018 10:30" to another format "2018-07-13T10:30:00"

Environment

All supported versions of the API Gateway

Resolution

The following steps are based on the following example:
1. add custom datetime format

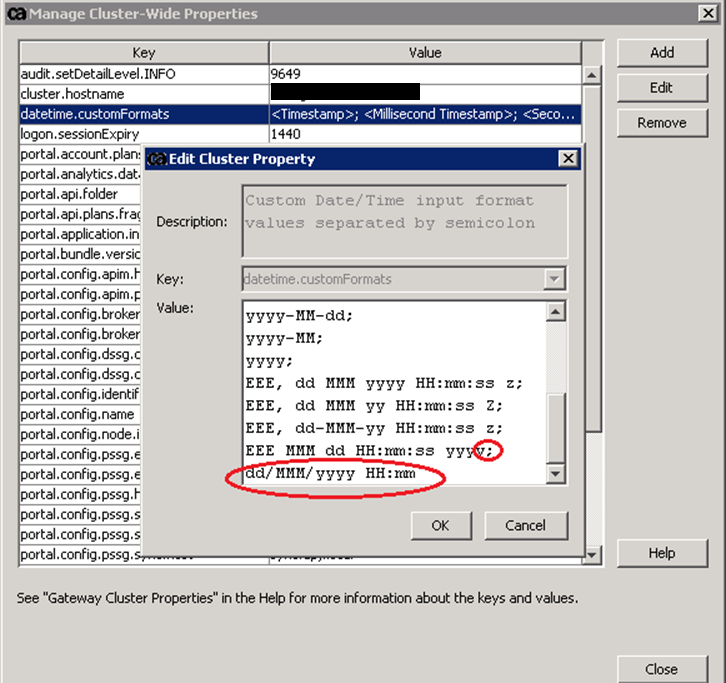

Add following line to the end of cluster-wide property datetime.customFormats:
dd/MMM/yyyy HH:mm

(NOTE: only the last line doesn't require semicolon";", so you should add ; to the end of the line before last line)

2. set context variable
Date type: Date/Time
Date Format: dd/MMM/yyyy HH:mm (select the new format from the dropdown list)
Expression: 13/Jul/2018 10:30 (you can use a string variable instead)

3. formatting output
${<your datetime variable>.yyyy-MM-dd'T'HH:mm:ss}

sample policies, (copy the xml and paste to you policy window)
<?xml version="1.0" encoding="UTF-8"?>
<wsp:Policy xmlns:L7p="http://www.layer7tech.com/ws/policy" xmlns:wsp="http://schemas.xmlsoap.org/ws/2002/12/policy">
<wsp:All wsp:Usage="Required">
<L7p:SetVariable>
<L7p:Base64Expression stringValue="MTMvSnVsLzIwMTggMTA6MzA="/>
<L7p:VariableToSet stringValue="orgdatestring"/>
</L7p:SetVariable>
<L7p:SetVariable>
<L7p:Base64Expression stringValue="JHtvcmdkYXRlc3RyaW5nfQ=="/>
<L7p:DataType variableDataType="dateTime"/>
<L7p:DateFormat stringValue="dd/MMM/yyyy HH:mm"/>
<L7p:DateOffsetExpression stringValue=""/>
<L7p:VariableToSet stringValue="newdate"/>
</L7p:SetVariable>
<L7p:HardcodedResponse>
<L7p:Base64ResponseBody stringValue="b2xkIGRhdGU6ICR7b3JnZGF0ZXN0cmluZ30KbmV3IGRhdGU6ICR7bmV3ZGF0ZS55eXl5LU1NLWRkJ1QnSEg6bW06c3N9"/>
<L7p:ResponseContentType stringValue="text/plain; charset=UTF-8"/>
</L7p:HardcodedResponse>
</wsp:All>
</wsp:Policy>


Additional Information

References,
https://techdocs.broadcom.com/us/en/ca-enterprise-software/layer7-api-management/api-gateway/10-1/reference/gateway-cluster-properties/miscellaneous-cluster-properties.html
https://techdocs.broadcom.com/us/en/ca-enterprise-software/layer7-api-management/api-gateway/10-1/reference/context-variables/date-and-time-variables.html
https://techdocs.broadcom.com/us/en/ca-enterprise-software/layer7-api-management/api-gateway/10-1/policy-assertions/assertion-palette/policy-logic-assertions/set-context-variable-assertion.html

As per the 2nd document, for the details of datetime patterns, please refer to,
https://docs.oracle.com/javase/7/docs/api/java/text/SimpleDateFormat.html
