How to exclude specific interfaces from snmpcollector template

Products

• DX Unified Infrastructure Management (Nimsoft / UIM)

Issue/Introduction

Here is an example how to "exclude" specific interfaces from template.

Environment

DX UIM 20.4.x / 23.4.x

SNMPCOLLECTOR

Resolution

Disclaimer - This KB article give you example/tips how to facilitate filtering criteria.
This is an example, the same goal might be achieved via different approach.

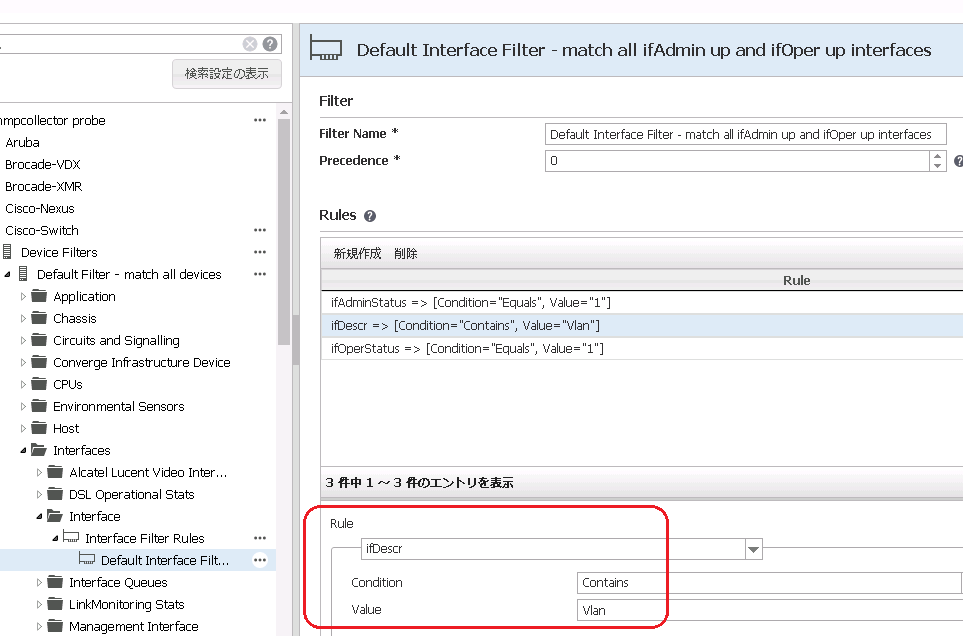

CASE 1 - Naming for criteria.

In this example, template is applied on interfaces where string "Vlan" is included in ifDescription.
(*) Value is case sensitive. "vlan" or "VLAN" not match in this example.

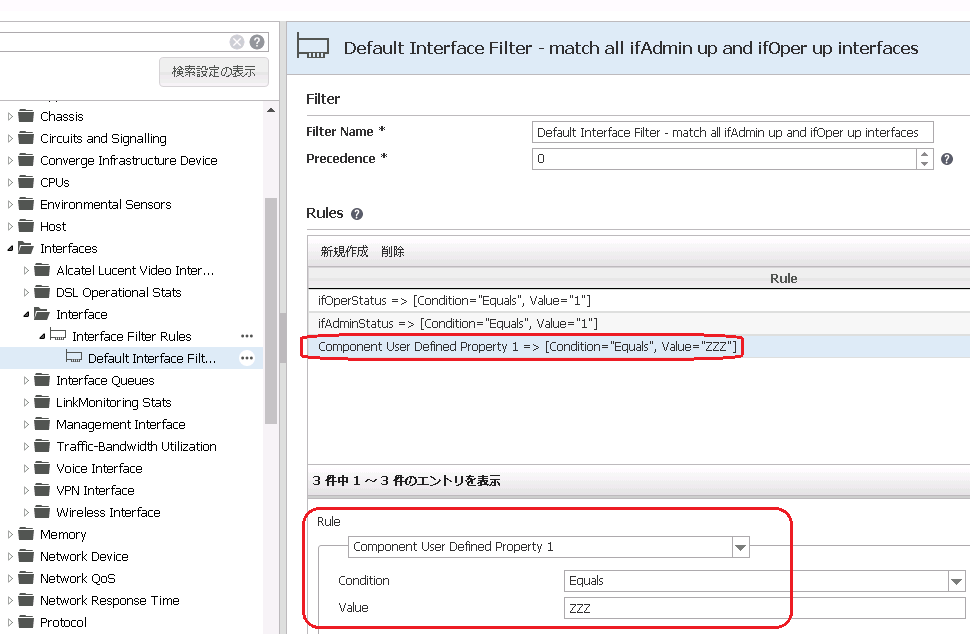

CASE 2 - 'User Tag' (Component User Defined Property 1)

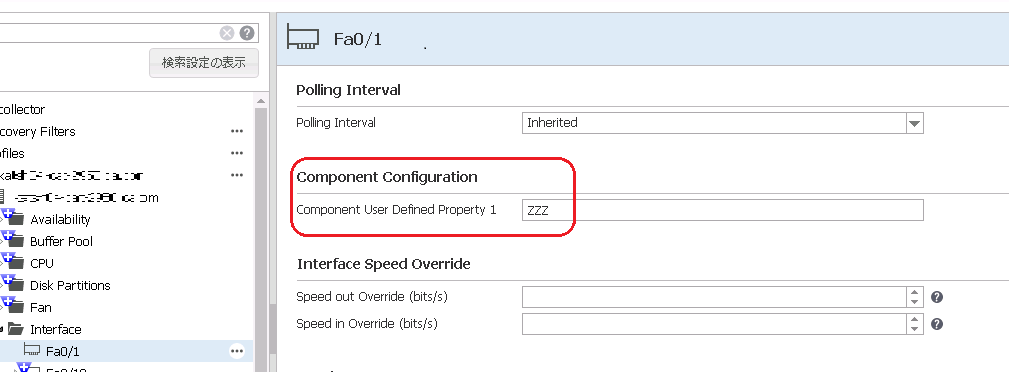

In this example, template is applied to the interface where the same value is found in it's Component User Defined Property 1.
