Monitor Windows Mount points for Exchange Servers

book

Article ID: 103990

calendar_today

Updated On:

Products

DX Infrastructure Management NIMSOFT PROBES

Issue/Introduction

The "cdm" probe and "dirscan" probe do not monitor Exchange Mount Points.
They cannot see them.  These drives do not have Mount Points and do not have Drive letters.

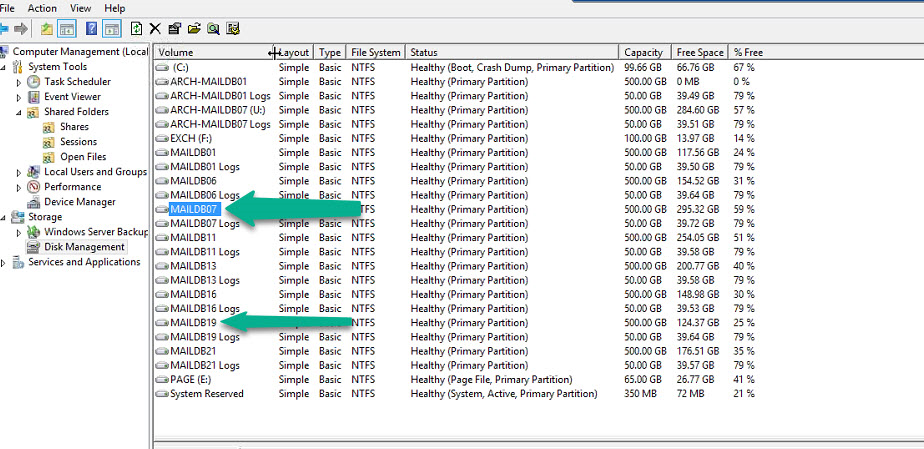

For example:

Cause

The "cdm" and "dirscan" probes cannot see these mount points.
The "Logmon" probe can be used to launch a PowerShell script to check the free space.

Environment

UIM 8.5.1
logmon 3.,92

Resolution

1- Create a Powershell script in the robot directory of the Exchange Server(s):
    under "C:\Progra~2\Nimsoft\" called "MountPoint.ps1"

2- Add these contents:

$servers = (Get-Content "C:\Progra~2\Nimsoft\servers.txt")
# Check each server
foreach ($server in $servers)
{
     # First check if the server is up
    if ((Test-Connection -quiet $server) -eq $true) {
         # Get all the volumes on the server with out a drive letter
        $volumes = Get-WmiObject -computer $server win32_volume | Where-object {$_.DriveLetter -eq $null}
         # Check each volume found
        foreach ($volume in $volumes) {
             # Skip the System Reserved volume. It will always be low
            if ($volume.Label -ne "System Reserved") {
                 # Do some math to convert bytes into GB, rounded and 2 decimal places
                if (([math]::round(($volume.FreeSpace / 1073741824),2)) -le $lowSpace) {
                     # write output including low disk space setting, server fqdn and volume name
                    Write-Output "Low disk space warning (below $($lowSpace)GB) - $($server) - $($volume.Label)"
                    }
                }
            }
        }



3- Create a "servers.txt" file in the same folder.
    This should contain a list of FQDN of Exchange servers for the servers you want to monitor.
     For example:
        server1-exchange.company.com
        server2-exchange.company.com
        server3-exchange.company.com
        server4-exchange.company.com

4- Run the script to make sure it works

5- Download and deploy the logmon probe to this robot.

6- This example is using the Infrastructure Manager client, it is fine to also use the web adminconsole.
     Create a new profile.

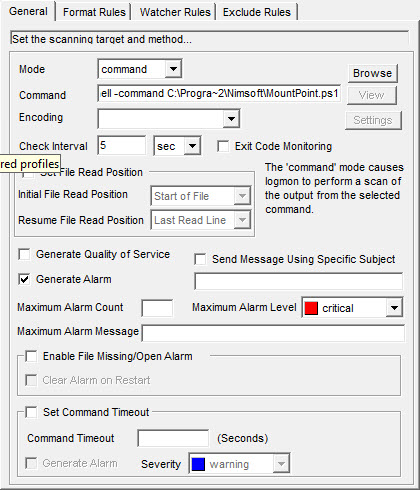

    General Tab:

7- Add a Watcher Rule

8- This should product alarms similar to the following:

Additional Information

Please note that the Powershell script will run with the same account that the "Nimsoft Robot Watcher Service" is running as on that robot.
