How to create a SpectroWatch to trigger an alarm base on Condition

book

Article ID: 100819

calendar_today

Updated On:

Products

CA Spectrum

Issue/Introduction

When customer received Suppressed alarms after the VNM Model loses connections to a remote site, the customer wants a critical or Major alarm to be asserted.

How to create a SpectroWatch to trigger an alarm base on Condition

Environment

DX NetOps Spectrum

Resolution

1. Log in to CA Spectrum OneClick Console

2. Click on the model where you want the alarm to be asserted.

3. Click on the Information tab in the Component Detail panel

4. Find and expand the "Thresholds and Watches" -> Watches subview

5. Click on the "Create a new Watch" icon

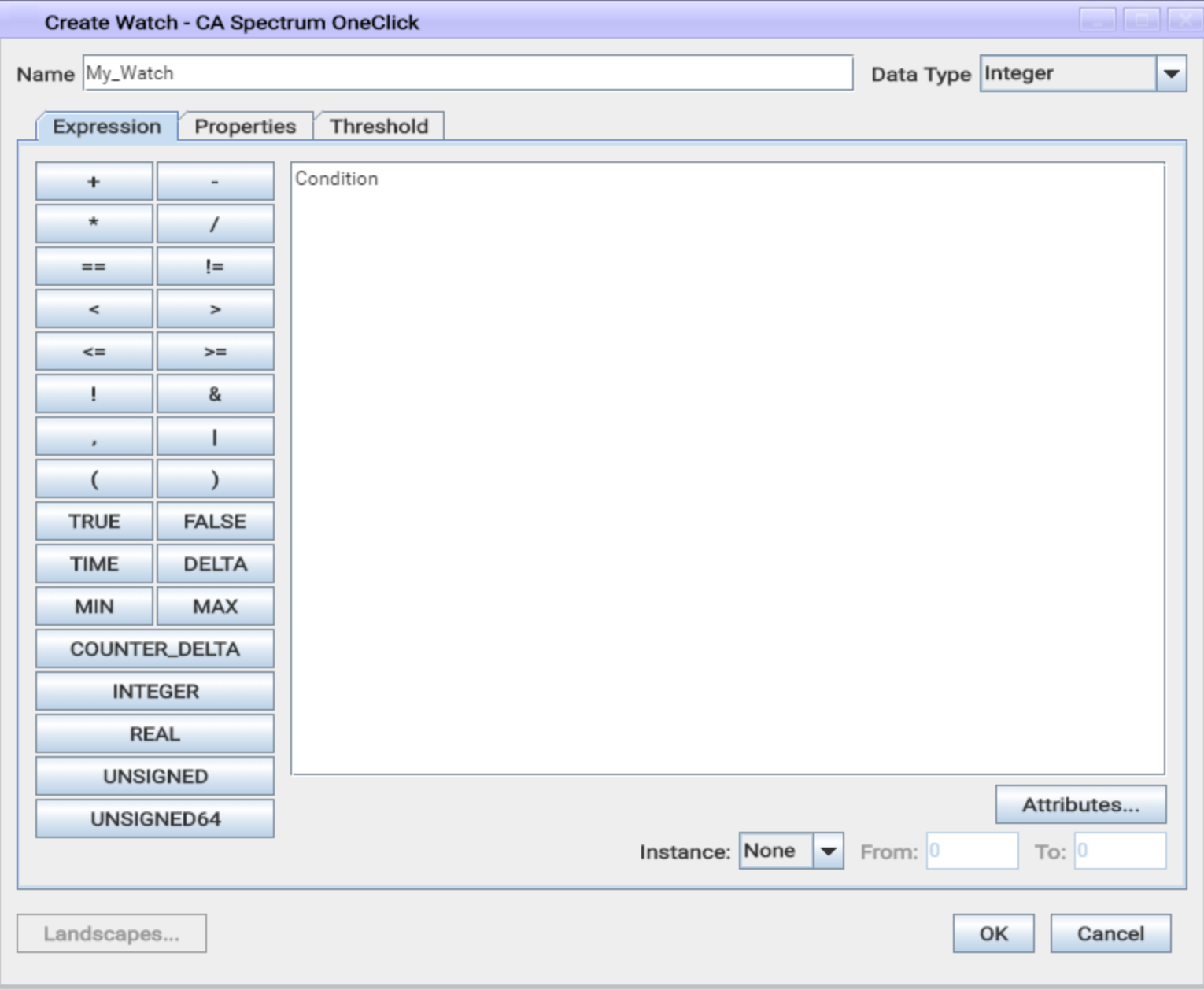

6. In the 'Expression' Tab:
    a. Enter a name for the watch in the Name field
    b. Set the Data Type to Integer
    c. Click on the Attributes button, search for the Condition Attribute and select

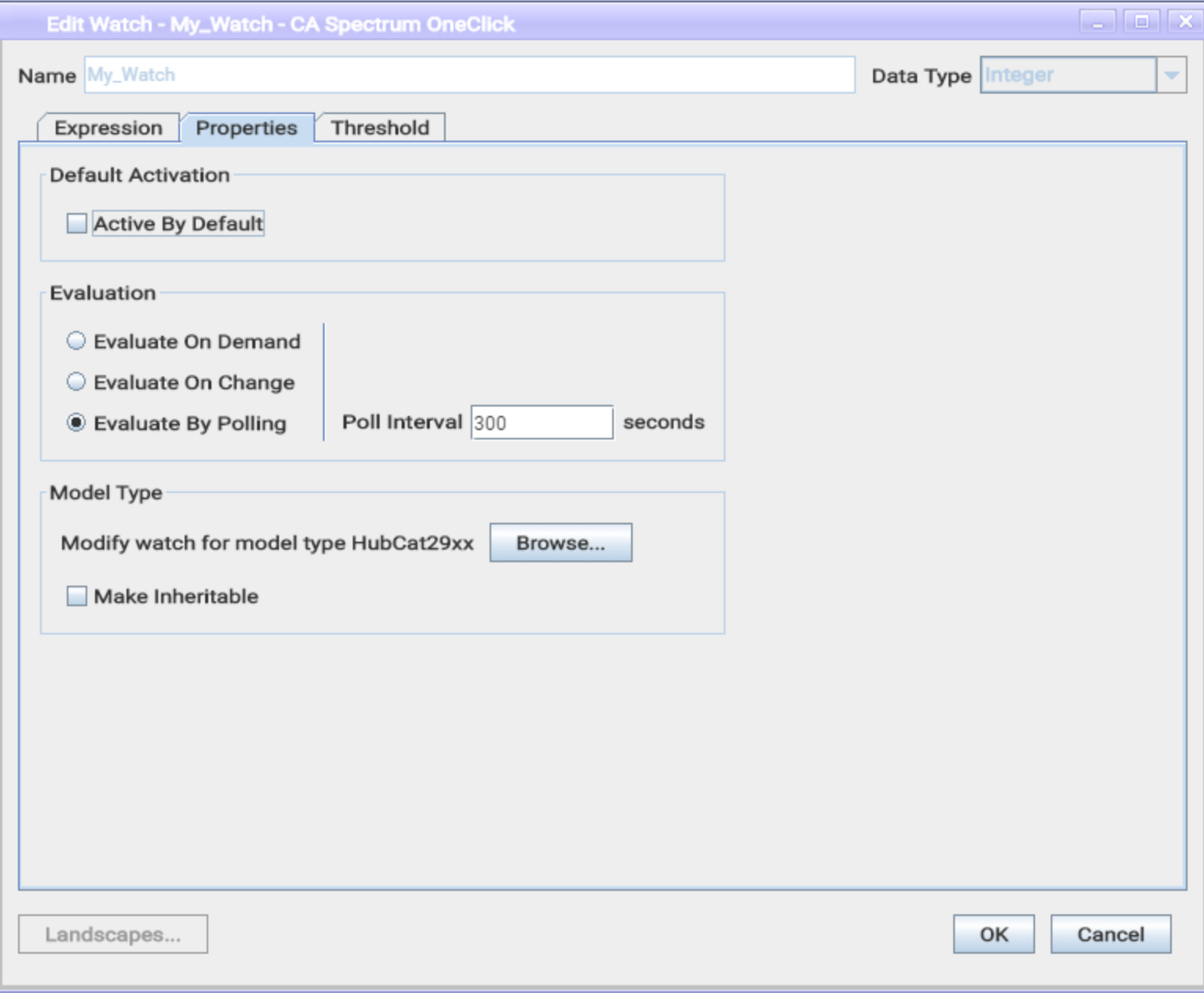

4. Click on 'Properties' Tab:

    a. Do not check the "Active By Default" check box. A SpectroWatch is a change to the catalog and all current models of this type and all future models of this type will
           automatically have this watch created on them. So, setting "Active By Default" will cause this watch to be active for all current and future model of this type which
           may not be wanted. It is advisable to activate the watch on the individual model(s) after creating the watch

    b. Set the Evaluation to "Evaluate By Polling" and set the desired Poll Interval

    c. Uncheck the "Make Inheritable" check box

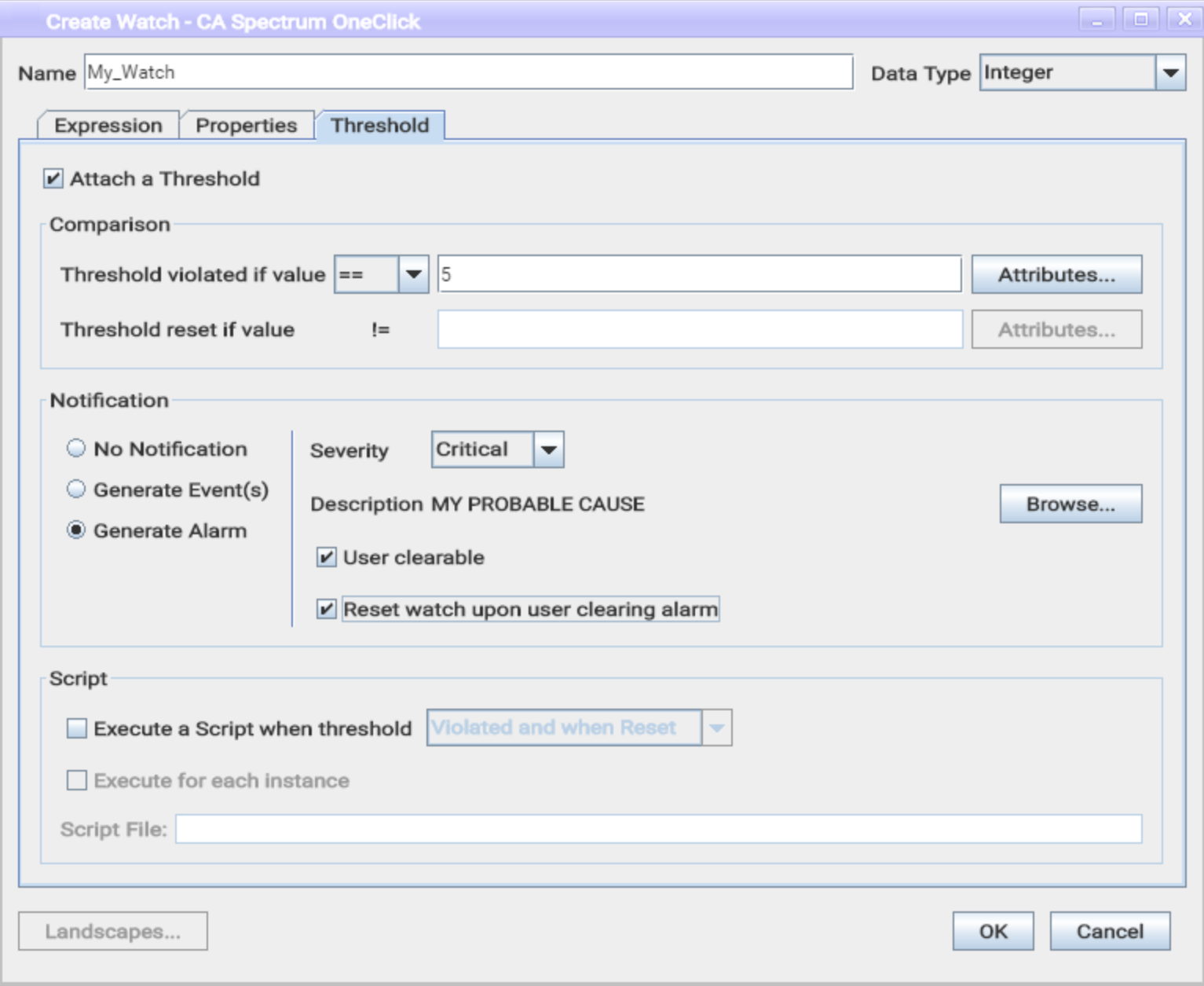

5. Click on the 'Threshold' Tab:

    a. Check the "Attach a Threshold" check box
    b. Set the threshold value to "==" a value of "5"
    c. Set the threshold rest to "!=" a value of 5
    d. Set the Notification to "Generate Alarm"
    e. Set the Severity as desired
    f. Click the Browse button and select a Probable Cause or create your own custom one




6. To enable the watch on the individual model:

    a. Select the model
    b. Click on the Information tab
    c. Find and expand the Thresholds and Watches -> Watches subview
    d. Find and select the watch in the list
    e. Click on the "Activate the selected watches" icon


Additional Information

Please reference the "Watches" section of the documentation for more information.
