Expanding Distributed Port Group Capacity with Elastic Port Allocation Without Downtime

Products

• VMware vSphere ESXi

Issue/Introduction

- When migrating a cluster from a standard switch to a vSphere Distributed Switch (vDS), the Distributed Port Group may show full port usage (e.g., 24/24 ports used).

- Administrators may require clarification on the production impact of expanding the port count to accommodate additional virtual machines.

Environment

vSphere ESXi 7.x,8.x,9.x

Cause

The Distributed Port Group requires additional port capacity to accommodate incoming virtual machine migrations. This represents standard operational scaling rather than a fault condition.

Resolution

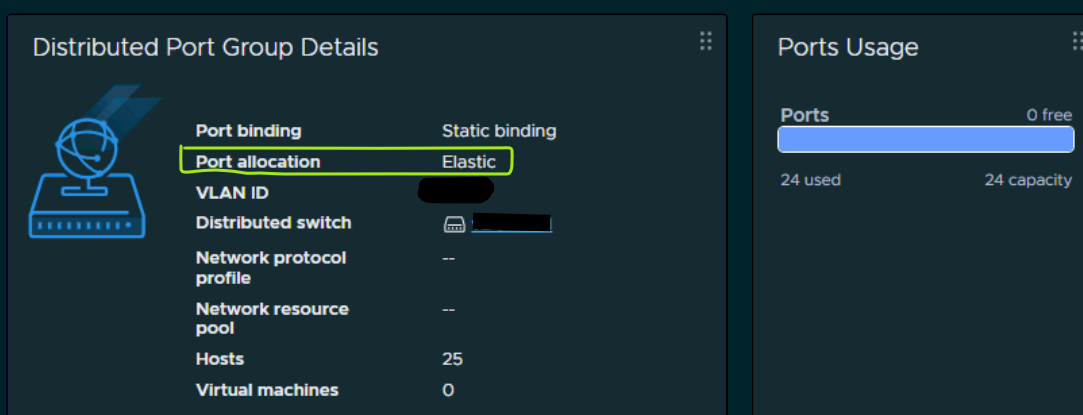

1. Verify the Port allocation setting on the target Distributed Port Group.
2. If configured as Elastic, manual expansion is not required. vCenter automatically adds a new set of eight ports when a virtual machine attempts to connect and no free ports are available.
3. Note that the automatic expansion is triggered exclusively by connecting virtual machines, not by adding a new ESXi host to the vDS.
4. To manually expand the capacity, navigate to the Distributed Port Group settings and update the Number of ports to the desired value (e.g., 64).
5. Save the configuration. Modifying the "Number of ports" is strictly a control-plane operation that updates the logical configuration limit within the vCenter database. It does not disconnect existing virtual machines, reset adapters, or interrupt active data-plane traffic.

Additional Information

When virtual machines are removed or disconnected from the Distributed Port Group, the port count will automatically shrink back toward the originally configured baseline.

Reference doc: Add a Distributed Port Group
